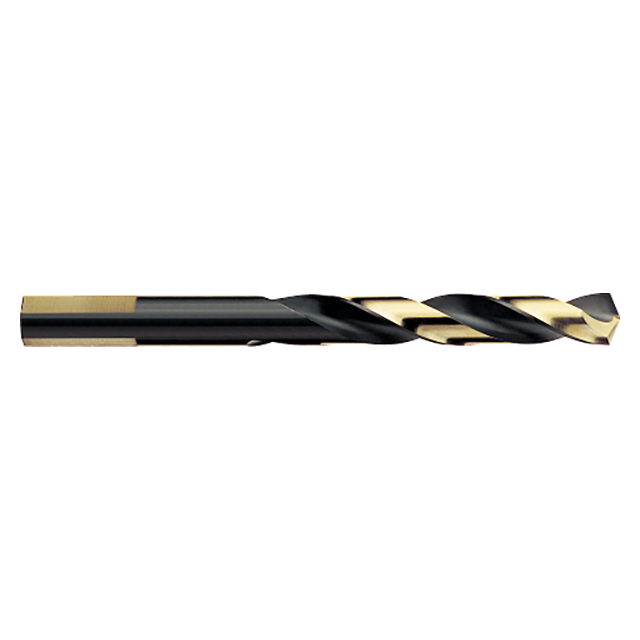

Engineered with mechanics length for added tool holding security in 3 jaw chucks, and featuring Black & Gold Oxide finish for minimized friction and improved lubricity, these Titan USA drills are engineered with a 135 Degree split point.
Features:
- 135 Degree split point
- Black & Gold Oxide finish minimizes friction and improves lubricity
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CD45522 |
| Drill Diameter (Inch) | 0.3438" |
| Flute Length (Inch) | 2.6250" (2-5/8) |
| Shank Diameter (Inch) | 0.3438" |
| Overall Length (Inch) | 4.1250" (4-1/8) |
| Point Angle (Degree) | 135 Degree |
| Number of Flutes | 2 |
| Substrate | High Speed Steel |
| Coating | Black & Gold Oxide |
| Product Type | Maintenance Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
11/32"
Drill Bit Size (Decimal Inch):
0.3438"
Drill Bit Size (mm):
8.73mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
2-5/8"
Flute Length (Decimal Inch):
2.6250"
Flute Length (mm):
66.68mm
Overall Length (Inch):
4-1/8"
Overall Length (Decimal Inch):
4.1250"
Overall Length (mm):
104.78mm
Material:
High Speed Steel
Finish/Coating:
Black & Gold Oxide
interval quantity:
6
