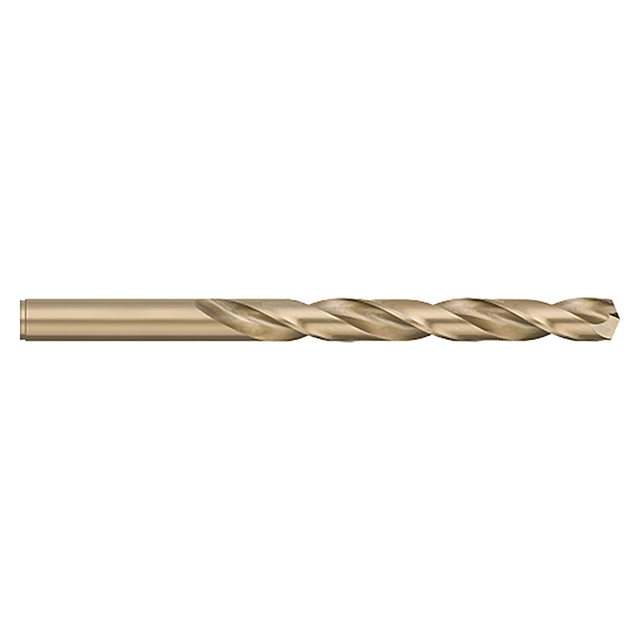

Titan USA CD50201 | 0.2280" Diameter x 0.2280" Shank x 2.6250" (2-5/8) Flute Length x 3.8750" (3-7/8) OAL 2 Flute Gold Oxide Coated Cobalt Jobber Length Drill Bit

$4.59
Brand:
Titan USA
Drill Bit Size (Inch):
15/64"
Drill Bit Size (Decimal Inch):
0.2280"
Drill Bit Size (mm):
5.79mm
Drill Point Angle:
135 Degree
Overall Length (Inch):
3-7/8"
Overall Length (Decimal Inch):
3.8750"
Overall Length (mm):
98.43mm
Material:
Cobalt
Finish/Coating:
Gold Oxide
interval quantity:
12
SKU:
10245972
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Features:

  • Jobber length for deeper drilling applications
  • Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
  • 135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
  • Gold Oxide finish extends tool life, improves lubricity, and reduces grinding stresses
  • M-42 cobalt (identification ring on shank)
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberCD50201
Drill Diameter (Inch)0.2280"
Shank Diameter (Inch)0.2280"
Overall Length (Inch)3.8750" (3-7/8)
Flute Length (Inch)2.6250" (2-5/8)
Point Angle (Degree)135 Degree
CoatingGold Oxide
SubstrateCobalt
Number of Flutes2
Product TypeJobber Length Drill Bit
