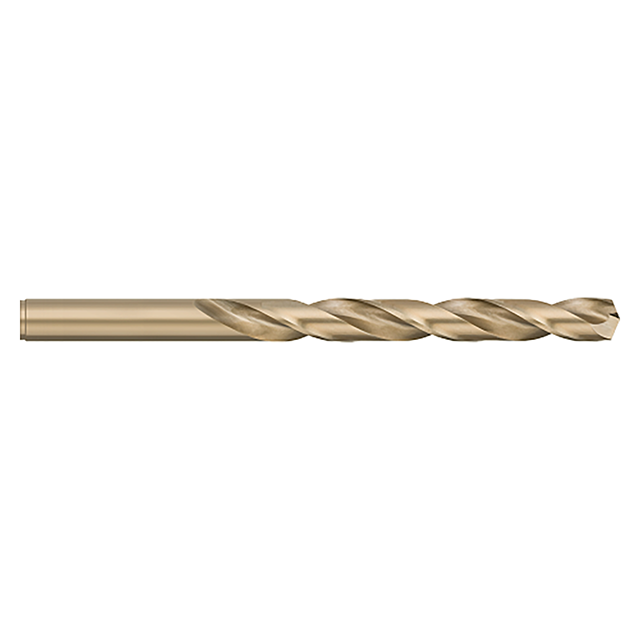

Name: Titan USA CD50214 | 0.1820" Diameter x 0.1820" Shank x 2.1875" (2-3/16) Flute Length x 3.3750" (3-3/8) OAL 2 Flute Gold Oxide Coated Cobalt Jobber Length Drill Bit
Brand: Titan USA
SKU: 10245985
Price: 3.33 USD
Availability: InStock

Titan USA CD50214 | 0.1820" Diameter x 0.1820" Shank x 2.1875" (2-3/16) Flute Length x 3.3750" (3-3/8) OAL 2 Flute Gold Oxide Coated Cobalt Jobber Length Drill Bit

$3.33

interval quantity:

SKU:

10245985

Weight:

0.02 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

Jobber length for deeper drilling applications
Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
Gold Oxide finish extends tool life, improves lubricity, and reduces grinding stresses
M-42 cobalt (identification ring on shank)
CNC ground in the USA

Product Specifications

Manufacturer Part Number	CD50214
Drill Diameter (Inch)	0.1820"
Shank Diameter (Inch)	0.1820"
Overall Length (Inch)	3.3750" (3-3/8)
Flute Length (Inch)	2.1875" (2-3/16)
Point Angle (Degree)	135 Degree
Coating	Gold Oxide
Substrate	Cobalt
Number of Flutes	2
Product Type	Jobber Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
