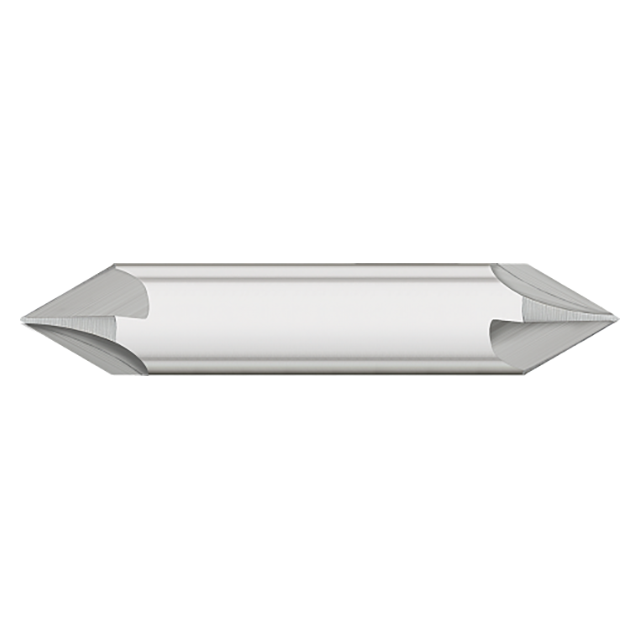

Engineered with 4 flutes for higher feed rates over single flute tools, this offering of Titan USA High Speed Steel Double-Ended Countersinks provides excellent performance when countersinking and deburring holes.
Features:
- Designed for countersinking, and deburring holes
- 4 flute design allows for higher feed rates over single flute design
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CD51068 |
| Cutting Diameter (Inch) | 0.3125" (5/16) |
| Shank Diameter | 0.3125" (5/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Angle per Side | 3 |
| Number of Flutes | 4 |
| Coating | Uncoated |
| Substrate | High Speed Steel |
| Product Type | Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3125"
Cutter Diameter (mm):
7.94mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Included Angle:
60 Degree
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
High Speed Steel
interval quantity:
1
