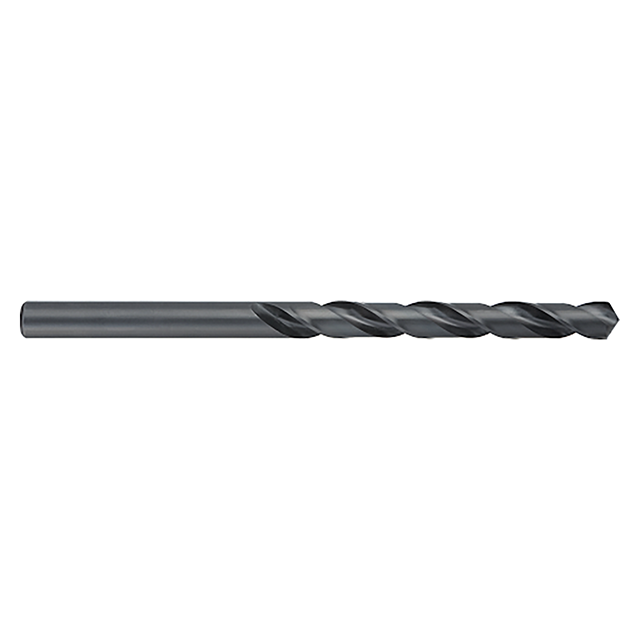

Titan USA CD52517 | 0.2656" (17/64) Diameter x 0.2656" (17/64) Shank x 3.8750" (3-7/8) Flute Length x 6.2500" (6-1/4) OAL 118 Degree Point Angle 2 Flute Black Oxide Coated High Speed Steel Taper Length Drill Bit

$12.15
Brand:
Titan USA
Drill Bit Size (Inch):
17/64"
Drill Bit Size (Decimal Inch):
0.2656"
Drill Bit Size (mm):
6.75mm
Flute Length (Inch):
3-7/8"
Flute Length (Decimal Inch):
3.8750"
Flute Length (mm):
98.43mm
Overall Length (Inch):
6-1/4"
Overall Length (Decimal Inch):
6.2500"
Overall Length (mm):
158.75mm
Drill Point Angle:
118 Degree
Finish/Coating:
Black Oxide
Material:
High Speed Steel
interval quantity:
6
SKU:
10246177
Weight:
0.08 LBS
Shipping:
Calculated at Checkout

Features:

  • Taper length for drilling applications at extreme depths
  • 118 Degree point
  • Black Oxide finish increases wear resistance and adds lubricity to improve chip flow
  • High speed steel
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberCD52517
Drill Diameter (Inch)0.2656" (17/64)
Flute Length (Inch)3.8750" (3-7/8)
Shank Diameter (Inch)0.2656" (17/64)
Overall Length (Inch)6.2500" (6-1/4)
Point Angle (Degree)118 Degree
Number of Flutes2
SubstrateHigh Speed Steel
CoatingBlack Oxide
Product TypeTaper Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
