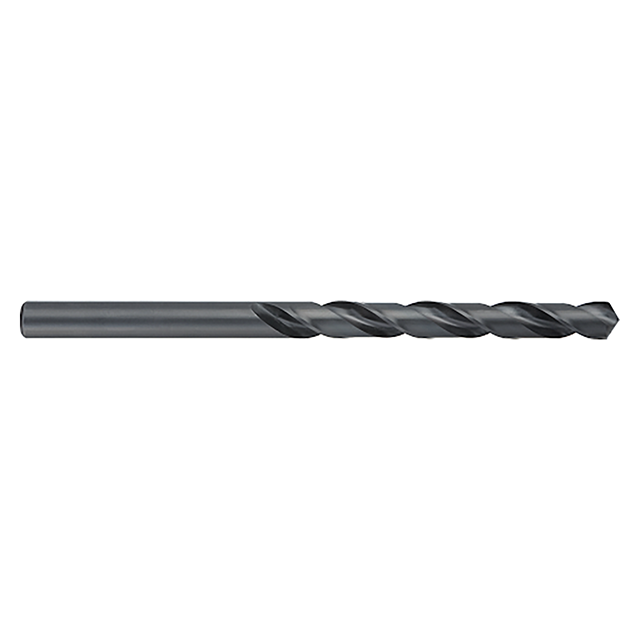

Titan USA CD52525 | 0.3906" (25/64) Diameter x 0.3906" (25/64) Shank x 4.3750" (4-3/8) Flute Length x 6.7500" (6-3/4) OAL 118 Degree Point Angle 2 Flute Black Oxide Coated High Speed Steel Taper Length Drill Bit

$17.82
Brand:
Titan USA
Drill Bit Size (Inch):
25/64"
Drill Bit Size (Decimal Inch):
0.3906"
Drill Bit Size (mm):
9.92mm
Flute Length (Inch):
4-3/8"
Flute Length (Decimal Inch):
4.3750"
Flute Length (mm):
111.13mm
Overall Length (Inch):
6-3/4"
Overall Length (Decimal Inch):
6.7500"
Overall Length (mm):
171.45mm
Drill Point Angle:
118 Degree
Finish/Coating:
Black Oxide
Material:
High Speed Steel
interval quantity:
6
SKU:
10246185
Weight:
0.18 LBS
Shipping:
Free Shipping

Features:

  • Taper length for drilling applications at extreme depths
  • 118 Degree point
  • Black Oxide finish increases wear resistance and adds lubricity to improve chip flow
  • High speed steel
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberCD52525
Drill Diameter (Inch)0.3906" (25/64)
Flute Length (Inch)4.3750" (4-3/8)
Shank Diameter (Inch)0.3906" (25/64)
Overall Length (Inch)6.7500" (6-3/4)
Point Angle (Degree)118 Degree
Number of Flutes2
SubstrateHigh Speed Steel
CoatingBlack Oxide
Product TypeTaper Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Titan USA
Drill Bit Size (Inch):
25/64"
Drill Bit Size (Decimal Inch):
0.3906"
Drill Bit Size (mm):
9.92mm
Flute Length (Inch):
4-3/8"
Flute Length (Decimal Inch):
4.3750"
Flute Length (mm):
111.13mm
Overall Length (Inch):
6-3/4"
Overall Length (Decimal Inch):
6.7500"
Overall Length (mm):
171.45mm
Drill Point Angle:
118 Degree
Finish/Coating:
Black Oxide
Material:
High Speed Steel
interval quantity:
6
