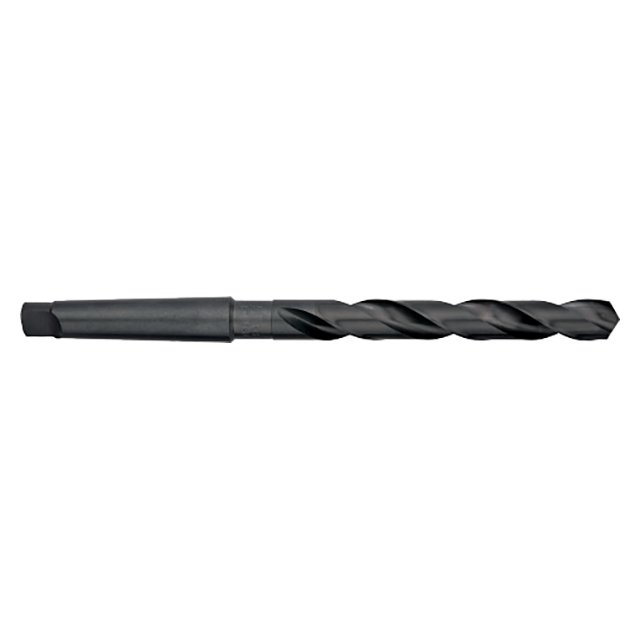

These fully stocked and ready-to-ship Titan USA high speed steel drills feature a taper shank, 118 Degree point angle, and black oxide finish, which increases wear resistance and adds lubricity to improve chip flow.
Features:
- Morse taper shank
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | CD55056 |
| Drill Diameter (Inch) | 0.8750" (7/8) |
| Flute Length (Inch) | 6.1250" (6-1/8) |
| Overall Length (Inch) | 10.7500" (10-3/4) |
| Number of Flutes | 2 |
| Point Angle (Degree) | 118 Degree |
| Size | #3 |
| Substrate | High Speed Steel |
| Coating | Black Oxide |
| Product Type | Taper Shank Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
7/8"
Drill Bit Size (Decimal Inch):
0.8750"
Drill Bit Size (mm):
22.23mm
Drill Point Angle:
118 Degree
Flute Length (Inch):
6-1/8"
Flute Length (Decimal Inch):
6.1250"
Flute Length (mm):
155.58mm
Overall Length (Inch):
10-3/4"
Overall Length (Decimal Inch):
10.7500"
Overall Length (mm):
273.05mm
Material:
High Speed Steel
Finish/Coating:
Black Oxide
interval quantity:
1
