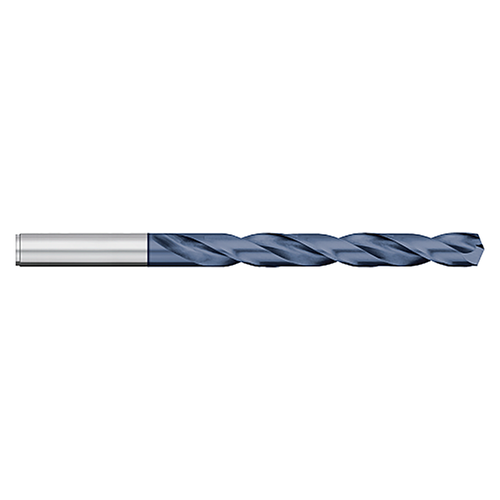

Name: Titan USA CD60707 | 0.1094" (7/64) Diameter x 0.1094" (7/64) Shank x 1.5000" (1-1/2) Flute Length x 2.6250" (2-5/8) OAL 2 Flute AlTiN Coated Cobalt Jobber Length Drill Bit
Brand: Titan USA
SKU: 10246457
Price: 3.24 USD
Availability: InStock

Titan USA CD60707 | 0.1094" (7/64) Diameter x 0.1094" (7/64) Shank x 1.5000" (1-1/2) Flute Length x 2.6250" (2-5/8) OAL 2 Flute AlTiN Coated Cobalt Jobber Length Drill Bit

$3.24

interval quantity:

SKU:

10246457

Weight:

0.01 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

Jobber length for deeper drilling applications
Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
AlTiN coating offers increased wear and heat resistance
M-42 cobalt (identification ring on shank)
CNC ground in the USA

Product Specifications

Manufacturer Part Number	CD60707
Drill Diameter (Inch)	0.1094" (7/64)
Shank Diameter (Inch)	0.1094" (7/64)
Overall Length (Inch)	2.6250" (2-5/8)
Flute Length (Inch)	1.5000" (1-1/2)
Point Angle (Degree)	135 Degree
Coating	AlTiN
Substrate	Cobalt
Number of Flutes	2
Product Type	Jobber Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
