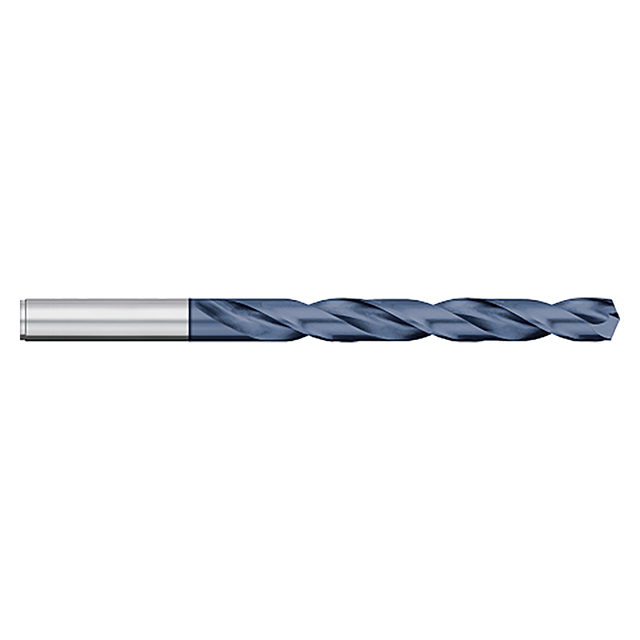

Titan USA CD60816 | 0.1770" (4.5mm) Diameter x 0.1770" (4.5mm) Shank x 2.1875" (2-3/16) Flute Length x 3.3750" (3-3/8) OAL 2 Flute AlTiN Coated Cobalt Jobber Length Drill Bit

$6.75 $5.81
(You save $0.94)
Brand:
Titan USA
Drill Bit Size (Inch):
11/64"
Drill Bit Size (Decimal Inch):
0.1770"
Drill Bit Size (mm):
4.50mm
Drill Point Angle:
135 Degree
Material:
Cobalt
Finish/Coating:
AlTiN
interval quantity:
12
SKU:
10246498
UPC:
Weight:
0.02 LBS
Minimum Purchase:
12 units
Shipping:
Calculated at Checkout

Related Products

Features:

  • Jobber length for deeper drilling applications
  • Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
  • 135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
  • AlTiN coating offers increased wear and heat resistance
  • M-42 cobalt (identification ring on shank)
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberCD60816
Drill Diameter (Inch)0.1770"
Drill Diameter (mm)4.5mm
Shank Diameter (Inch)0.1770"
Shank Diameter (mm)4.5mm
Overall Length (Inch)3.3750" (3-3/8)
Flute Length (Inch)2.1875" (2-3/16)
Point Angle (Degree)135 Degree
CoatingAlTiN
SubstrateCobalt
Number of Flutes2
Product TypeJobber Length Drill Bit
