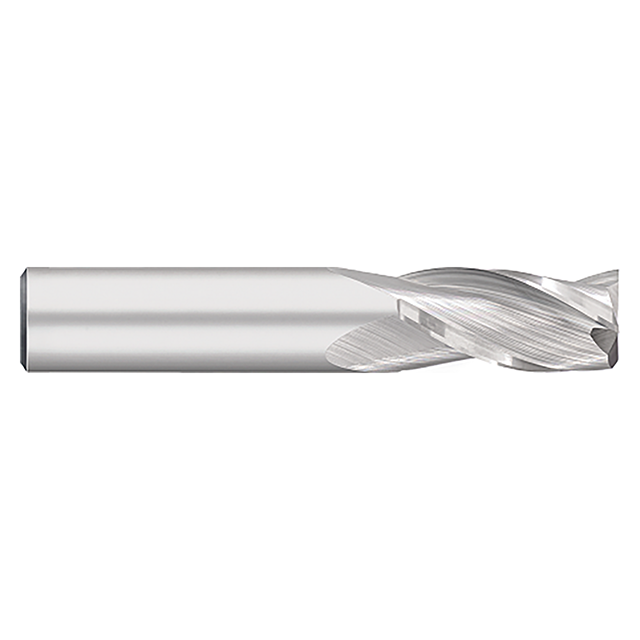

Ground from solid carbide in the USA, this Titan USA offering of General Purpose End Mills is offered with 3 flutes, a square profile, and a 30 Degree helix.
Features:
- 3 flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC10824 |
| Cutting Diameter (Inch) | 0.3750" (3/8) |
| Shank Diameter | 0.3750" (3/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Length of Cut (Inch) | 1.0000" (1) |
| Number of Flutes | 3 |
| Coating | Uncoated |
| Substrate | carbide |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3750"
Cutter Diameter (mm):
9.53mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
30 Degree
Number of Flutes:
3
Finish/Coating:
Uncoated
Material:
carbide
interval quantity:
1
