Product Specifications
| Manufacturer Part Number | TC11634 |
| Cutting Diameter (Decimal Inch) | 0.156" |
| Cutting Diameter (Inch) | 5/32" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.750" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.188" |
| Overall Length (Decimal Inch) | 2.000" |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Substrate | Carbide |
| Coating | AlTiN |

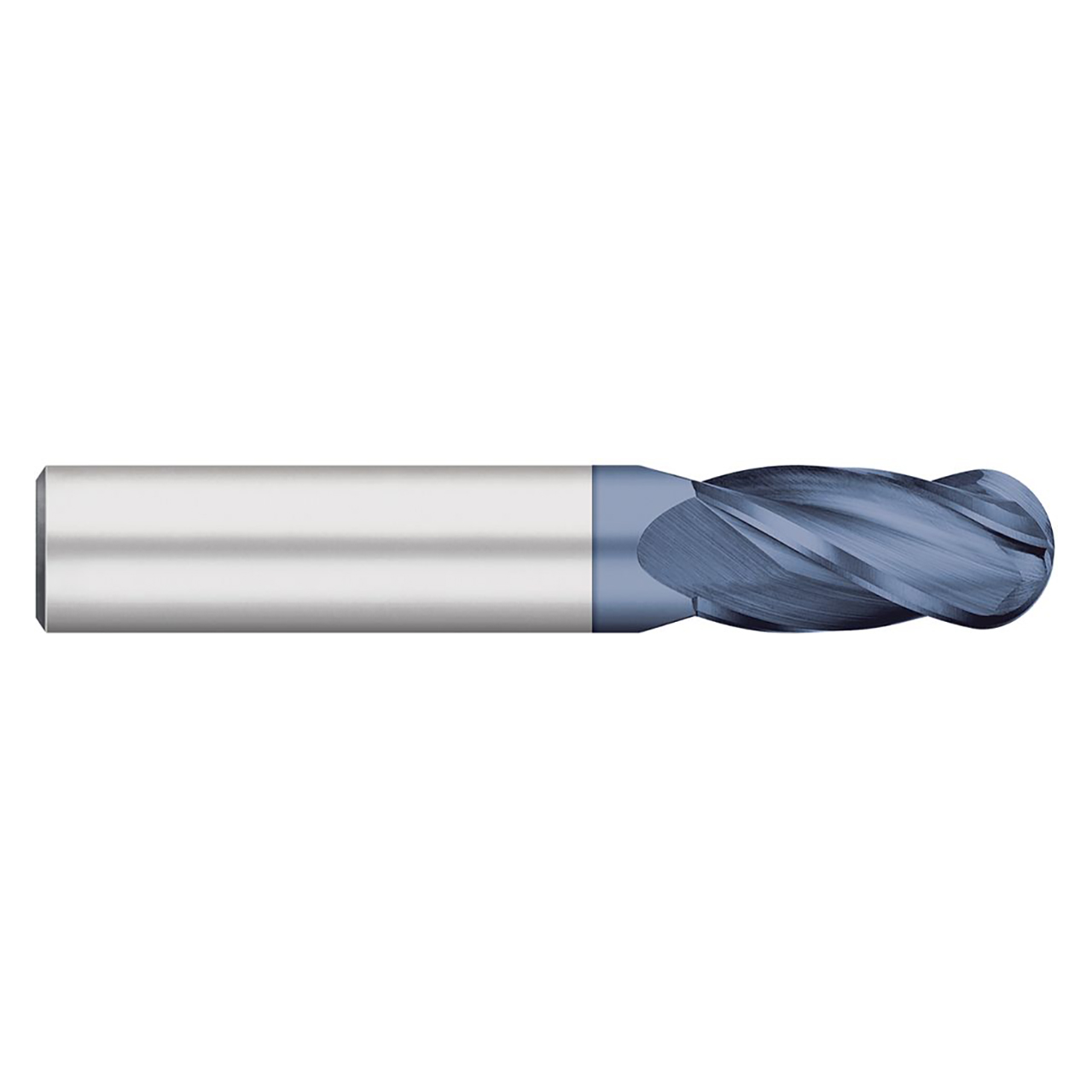

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutting Diameter (Inch):
5/32"
Cutting Diameter (Decimal Inch):
0.1560"
Cutting Diameter (mm):
3.96mm
Number of Flutes:
4
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1880"
Shank Diameter (mm):
4.780mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Material:
Carbide
Finish/Coating:
AlTiN
