Features:
- Offered in stub, regular, long, and extra long length styles
- 4 flutes
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- TiCN coating adds enhanced performance when AlTiN cannot be used
- AlTiN coating offers increased wear and heat resistance
- Solid Carbide
- CNC ground in the USA
Product Specifications

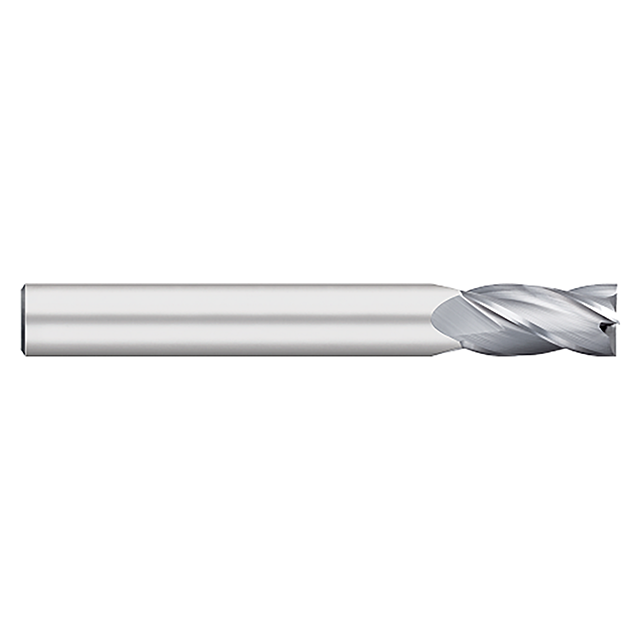

| Manufacturer Part Number | TC15525 |
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Length of Cut (Inch) | 1.0000" (1) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 4 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3750"
Cutter Diameter (mm):
9.53mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Helix Angle:
30 Degree
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
carbide
interval quantity:
1
