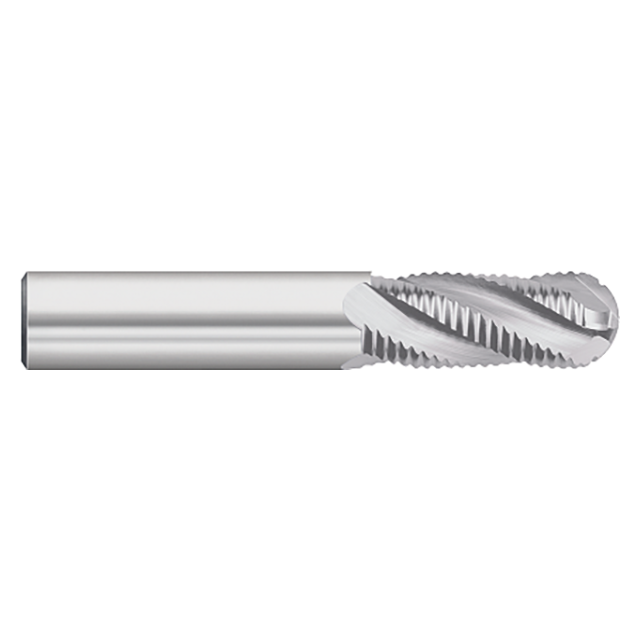

Titan USA's fully stocked, solid carbide offering of ball profile, 30 Degree helix, fine pitch Rougher End Mills, provides excellent performance in hardened steels, titanium, Inconel, and high temp alloys.
Features:
- Excellent performance in hardened steels, titanium, Inconel, and high temp alloys
- Regular length for versatility
- 4 flutes
- Regular length for versatility
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC20721 |
| Cutter Diameter (Inch) | 0.3125" (5/16) |
| Length of Cut (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 4.0000" (4) |
| Number of Flutes | 4 |
| Substrate | Carbide |
| Coating | Uncoated |
| Product Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
4
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Material:
Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
interval quantity:
1
