Features:
- Long flute, long reach
- 3 flutes
- Center cutting
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA

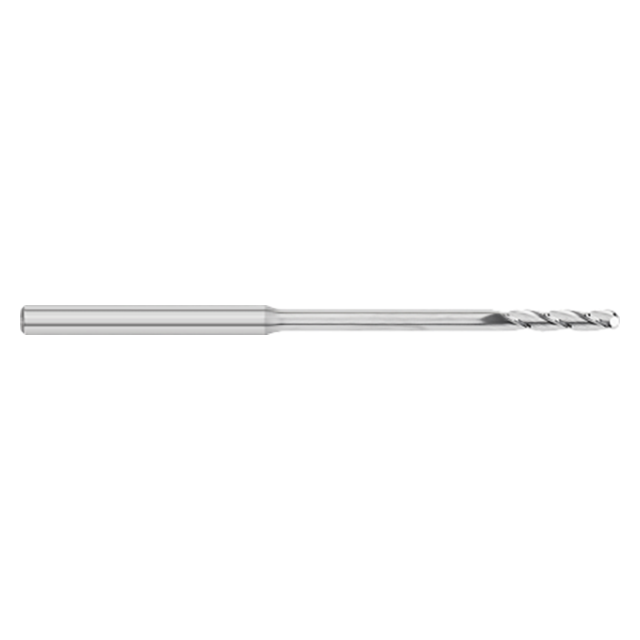

Product Specifications
| Manufacturer Part Number | TC52864 |
| Cutting Diameter (Inch) | 0.0850" |
| Shank Diameter | 0.1250" (1/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Length of Cut (Inch) | 0.4250" |
| Overall Reach (Inch) | 0.8500" |
| Number of Flutes | 3 |
| Coating | Uncoated |
| Substrate | carbide |
| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
5/64"
Mill Diameter (Decimal Inch):
0.0850"
Mill Diameter (mm):
2.16mm
Number of Flutes:
3
Length of Cut (Inch):
17/40"
Length of Cut (Decimal Inch):
0.4250"
Length of Cut (mm):
10.80mm
Material:
Carbide
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Finish/Coating:
Uncoated
Overall Reach (Inch):
17/20"
Overall Reach (Decimal Inch):
0.8500"
Overall Reach (mm):
21.59mm
interval quantity:
1
