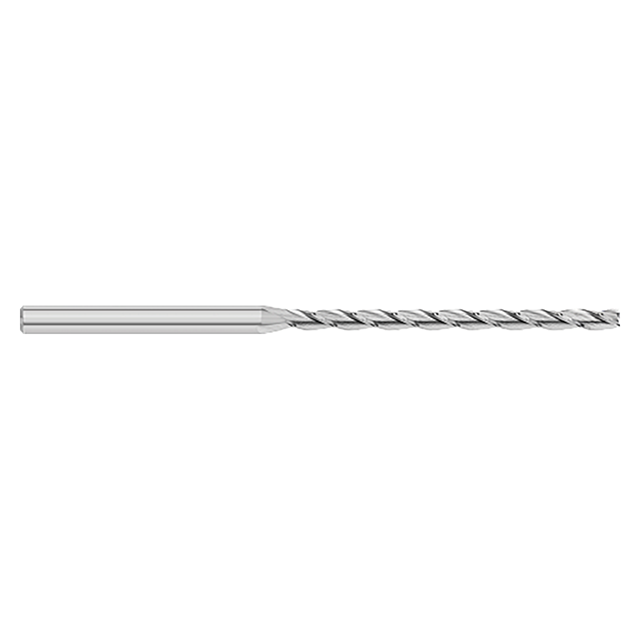

Titan USA TC53482 | 0.0900" Diameter x 0.1250" (1/8) Shank x 0.4500" LOC x 2.5000" (2-1/2) OAL 3 Flute Uncoated Carbide Square End Mill

$22.37
Brand:
Titan USA
Mill Diameter (Inch):
1/11"
Mill Diameter (Decimal Inch):
0.0900"
Mill Diameter (mm):
2.29mm
Number of Flutes:
3
Length of Cut (Inch):
9/20"
Length of Cut (Decimal Inch):
0.4500"
Length of Cut (mm):
11.43mm
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
interval quantity:
1
SKU:
25226617
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

Featuring a long flute design for deep cavities, this offering of Titan USA Micro End Mills is engineered with 3 flutes and a square profile.

Features:

  • Long flute design for deep cavities
  • 3 flutes
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC53482
Cutter Diameter (Inch)0.0900"
Length of Cut (Inch)0.4500"
Shank Diameter (Inch)0.1250" (1/8)
Overall Length (Inch)2.5000" (2-1/2)
Number of Flutes3
SubstrateCarbide
CoatingUncoated
Product TypeSquare End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Titan USA
Mill Diameter (Inch):
1/11"
Mill Diameter (Decimal Inch):
0.0900"
Mill Diameter (mm):
2.29mm
Number of Flutes:
3
Length of Cut (Inch):
9/20"
Length of Cut (Decimal Inch):
0.4500"
Length of Cut (mm):
11.43mm
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
interval quantity:
1
