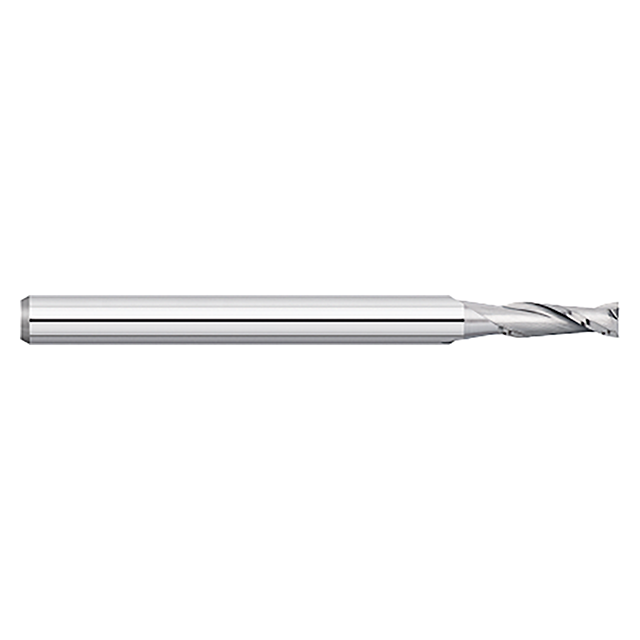

Titan USA TC56047 | 0.0470" (3/64) Diameter x 0.1250" (1/8) Shank x 0.1410" LOC x 1.5000" (1-1/2) OAL 2 Flute Uncoated Carbide Square End Mill

$12.83
Brand:
Titan USA
Mill Diameter (Inch):
3/64"
Mill Diameter (Decimal Inch):
0.0470"
Mill Diameter (mm):
1.19mm
Number of Flutes:
2
Length of Cut (Inch):
11/78"
Length of Cut (Decimal Inch):
0.1410"
Length of Cut (mm):
3.58mm
Material:
Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
interval quantity:
1
SKU:
25227413
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Offered in stub or regular flute styles, this 2 flute line of Micro End Mills, offered by Titan USA, are ground from Solid Carbide in the USA.

Features:

  • Offered in stub and regular flute styles
  • 2 flutes
  • Center cutting
  • Solid Carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC56047
Cutter Diameter (Inch)0.0470" (3/64)
Length of Cut (Inch)0.1410"
Shank Diameter (Inch)0.1250" (1/8)
Overall Length (Inch)1.5000" (1-1/2)
Number of Flutes2
SubstrateCarbide
CoatingUncoated
Product TypeSquare End Mill
