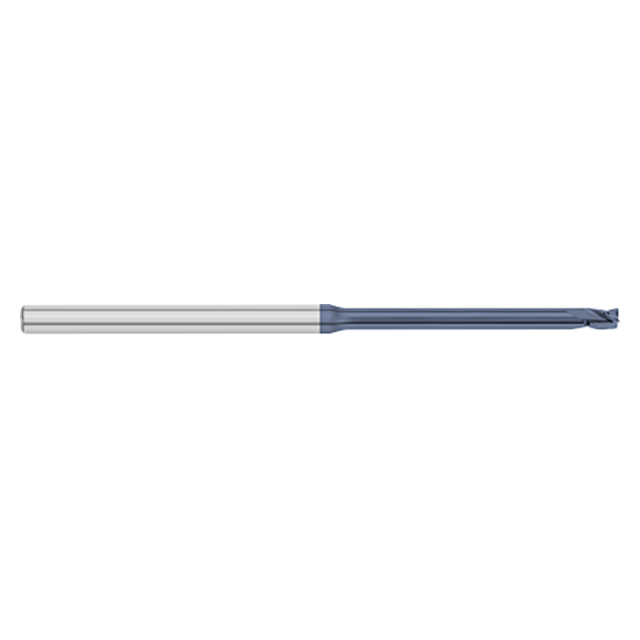

Square profile and 30 Degree helix micro end mills is a favorite among Titan USA customers.
Features:
- 3 flutes
- Solid carbide
- Center cutting
- Stub flutes for maximum rigidity
- Long reach design for deep cavities
- AlTiN coating offers increased wear and heat resistance
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC59759 |
| Cutter Diameter (Inch) | 0.0930" (3/32) |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Length of Cut (Inch) | 0.1390" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Overall Reach (Inch) | 0.7500" (3/4) |
| Number of Flutes | 3 |
| Coating | AlTiN |
| Substrate | Carbide |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Mill Diameter (Inch):
3/32"
Mill Diameter (Decimal Inch):
0.0930"
Mill Diameter (mm):
2.36mm
Number of Flutes:
3
Length of Cut (Inch):
5/36"
Length of Cut (Decimal Inch):
0.1390"
Length of Cut (mm):
3.53mm
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
