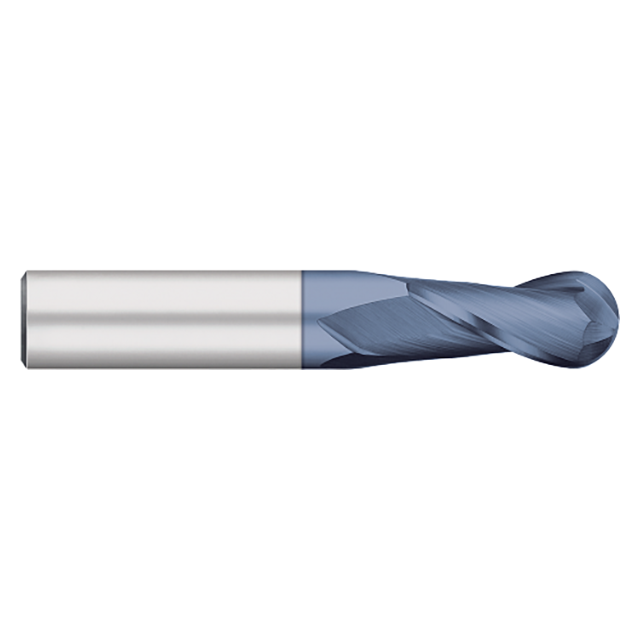

Titan USA TC65100 | 0.0625" (1/16) Diameter x 0.1250" (1/8) Shank x 0.1875" (3/16) LOC x 1.5000" (1-1/2) OAL 2 Flute AlTiN Carbide Ball End Mill

$20.45 $18.41
(You save $2.04)
Brand:
Titan USA
Cutter Diameter (Inch):
1/16"
Cutter Diameter (Decimal Inch):
0.0625"
Cutter Diameter (mm):
1.59mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Length of Cut (Inch):
3/16"
Length of Cut (Decimal Inch):
0.1875"
Length of Cut (mm):
4.76mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Helix Angle:
30 Degree
Number of Flutes:
2
Finish/Coating:
AlTiN
Material:
Carbide
interval quantity:
1
SKU:
25229228
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Designed for precision machining, these 2 flute Titan USA End Mills feature a ball profile and 30 Degree helix.

Features:

  • Solid carbide
  • Excellent for keyways
  • Tight tolerance for precision machining
  • AlTiN coating offers increased wear and heat resistance
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberTC65100
Cutter Diameter (Inch)0.0625" (1/16)
Length of Cut (Inch)0.1875" (3/16)
Shank Diameter (Inch)0.1250" (1/8)
Overall Length (Inch)1.5000" (1-1/2)
Number of Flutes2
CoatingAlTiN
SubstrateCarbide
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
