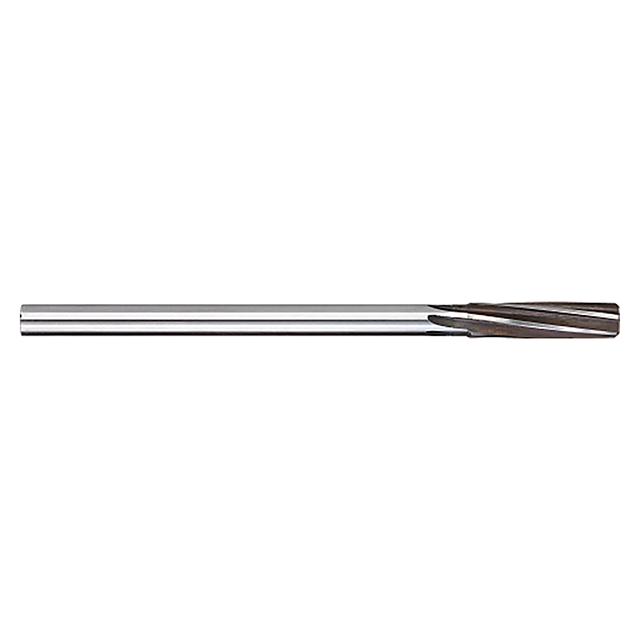

These fully stocked solid carbide Titan USA Reamers feature a 45 Degree chamfer angle and straight flutes, ideal for through and blind hole applications.
Features:
- Straight flute general purpose reamers for through and blind hole applications
- 45 Degree chamfer angle
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC87144 |
| Shank Diameter | 0.1160" |
| Overall Length (Inch) | 2.2500" (2-1/4) |
| Overall Reach (Inch) | 1.1250" (1-1/8) |
| Margin Length (Inch) | 0.6250" (5/8) |
| Number of Flutes | 4 |
| Coating | Uncoated |
| Substrate | Carbide |
| Product Type | Chucking Reamer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Reamer Diameter (Inch):
8/69"
Reamer Diameter (Decimal Inch):
0.1160"
Reamer Diameter (mm):
2.95mm
Overall Length (Inch):
2-1/4"
Overall Length (Decimal Inch):
2.2500"
Overall Length (mm):
57.15mm
Flute Length (Inch):
5/8"
Flute Length (Decimal Inch):
0.6250"
Flute Length (mm):
15.88mm
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
Uncoated
interval quantity:
1
