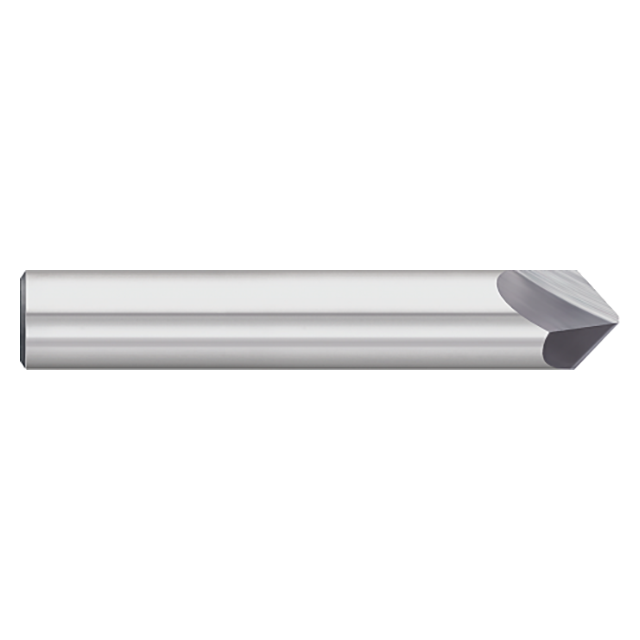

Titan USA TC87648 | 0.1250" (1/8) Diameter x 0.1250" (1/8) Shank x 0.0300" LOC x 1.5000" (1-1/2) OAL 120 Degree Included Angle 2 Flute Uncoated Carbide Chamfer Mill

$11.57
Brand:
Titan USA
Cutter Head Diameter (Inch):
1/8"
Cutter Head Diameter (Decimal Inch):
0.1250"
Cutter Head Diameter (mm):
3.18mm
Included Angle A:
120 Degree
Material:
Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Number of Flutes:
2
interval quantity:
1
SKU:
25230549
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

Features:

  • 2 flutes
  • Solid carbide
  • Flat tip (non-cutting) design for increased strength in chamfering and profiling applications
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC87648
Cutter Diameter (Inch)0.1250" (1/8)
Shank Diameter (Inch)0.1250" (1/8)
Length of Cut (Inch)0.0300"
Overall Length (Inch)1.5000" (1-1/2)
Tip (Inch)0.0200"
Theoretical Tip Length (Inch)0.0060"
Number of Flutes2
Included Angle (Degree)120 Degree
Angle per Side (Degree)60 Degree
CoatingUncoated
SubstrateCarbide
Product TypeChamfer Mill
