Product Specifications

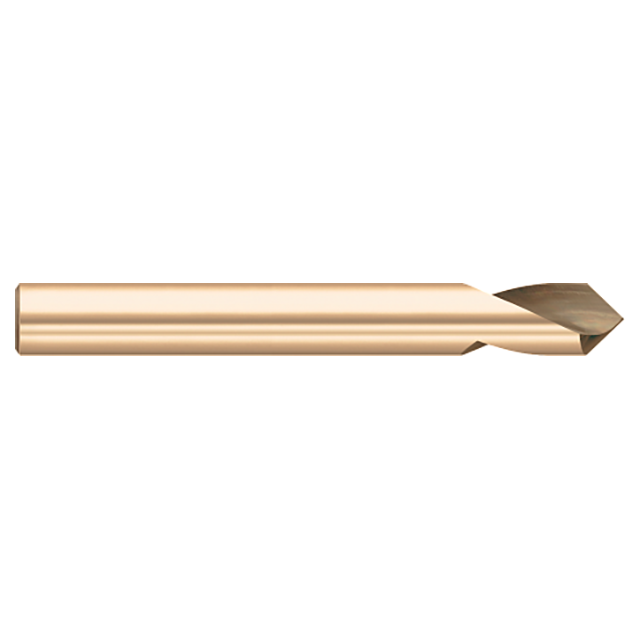

| # Manufacturer Number | TC95455 |
| Drill Diameter (Decimal Inch) | 0.6250" |
| Drill Diameter (Inch) | 5/8" |
| Flute Length (Decimal Inch) | 1.6250" |
| Flute Length (Inch) | 1-5/8" |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (Inch) | 4-1/4" |
| Include Angle (Degree) | 90 Degree |
| Point Angle (Degree) | 90 Degree |
| Angle Per Side (Degree) | 45 Degree |
| Number of Flutes | 2 |
| Material | Cobalt |
| Coating | Gold oxide Coated |
| Product Type | Combination Drill & Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Point Diameter (Decimal Inch):
0.6250";Drill Point Diameter (Inch)=5/8""
Drill Point Diameter (mm):
15.88mm
Included Angle:
90 Degree
Material:
Cobalt
Finish/Coating:
Gold oxide Coated
Overall Length (Decimal Inch):
4.2500";Overall Length (Inch)=4-1/4""
Overall Length (mm):
107.95mm
