Features:
- General purpose reamers featuring a 45 Degree chamfer angle
- Spiral flutes for increased chip evacuation in blind hole applications
- M42 cobalt
- Precision manufactured in the USA
Product Specifications
Manufacturer Part Number | TR96820 |
Reamer Diameter (Inch) | 0.2510" |
Shank Diameter (Inch) | 0.2405" |
Overall Length (Inch) | 6.0000" (6) |
Size | O/U |
Margin Length (Inch) | 1.5000" (1-1/2) |
Number of Flutes | 6 |
Coating | Uncoated |
Substrate | Cobalt |

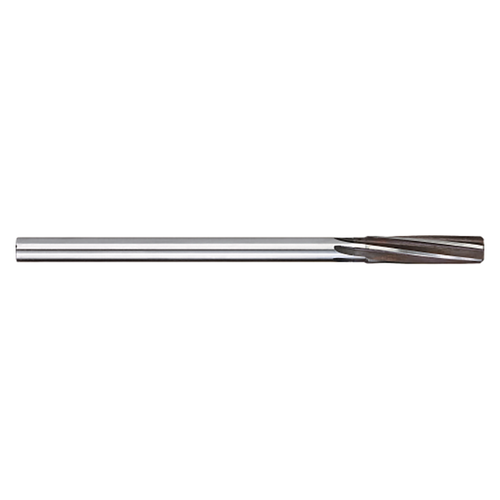

Product Type | Chucking Reamer |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Shank Diameter (Decimal Inch):
0.2405"
Shank Diameter (mm):
6.11mm
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Overall Length (mm):
152.40mm
Number of Flutes:
6
Finish/Coating:
Uncoated
Material:
Cobalt
interval quantity:
1
