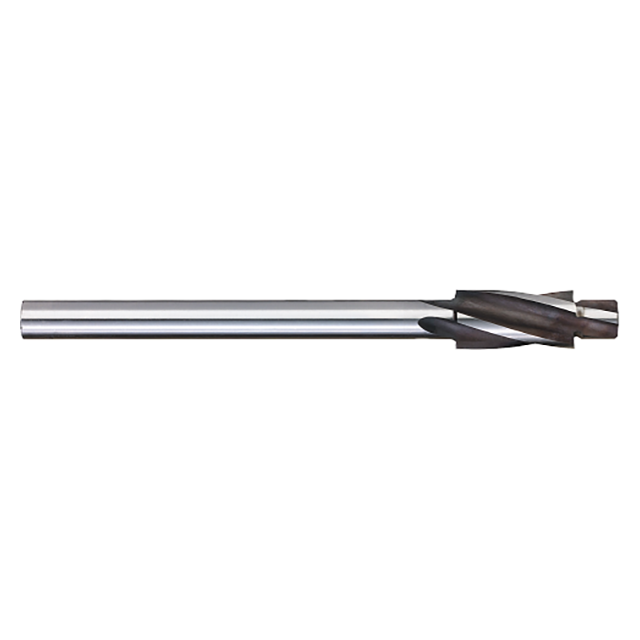

Titan USA's fully stocked offering of capscrew style reamers are precision manufactured in the USA from high speed steel, and feature a unique style that allows capscrews to sit flush with the surface of a part.
Features:
- General purpose reamers featuring a 45 Degree chamfer angle
- Capscrew counterbore style
- Unique style allowing capscrews to sit flush with the surface of a part
- Built in pilot to maintain alignment in existing hole
- High speed steel
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | TR97494 |
| Cutter Diameter (Inch) | 0.9590" |
| Flute Length (Inch) | 1.5000" (1-1/2) |
| End Length (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 7.6250" (7-5/8) |
| Number of Flutes | 4 |
| Size | 5/8 |
| Pilot Diameter (Inch) | 0.6400" (41/64) |
| Substrate | High Speed Steel |
| Coating | Uncoated |
| Product Type | Solid Pilot Counterbore |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Counterbore Diameter (Inch):
70/73"
Counterbore Diameter (Decimal Inch):
0.9590"
Counterbore Diameter (mm):
24.36mm
Fastener Diameter Compatibility (Inch):
5/8"
Fastener Diameter Compatibility (Decimal Inch):
0.6250"
Fastener Diameter Compatibility (mm):
15.88mm
Material:
High Speed Steel
Finish/Coating:
Uncoated
Number of Flutes:
4
