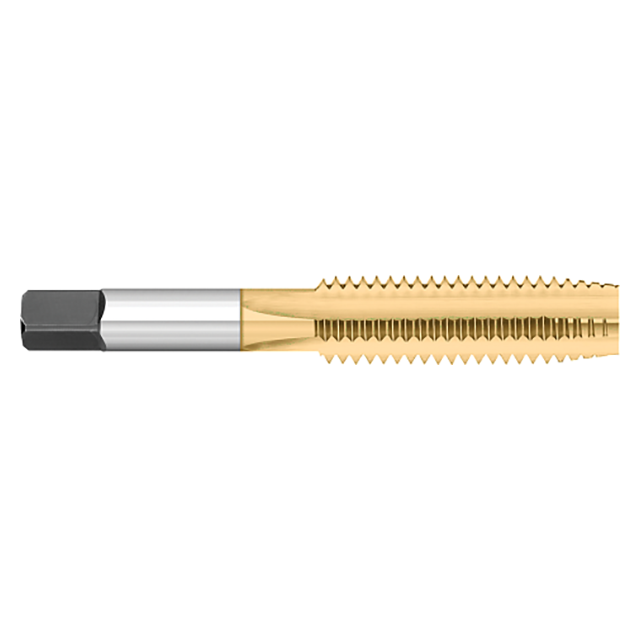

These Titan USA high speed steel, general purpose hand taps feature TiN coating, which provides improved performance in a wide variety of materials, and is generally used in applications with lower cutting speeds.
Features:
- For optimal results, use a Taper Tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
- Taps are on blanks that meet ANSI specifications
- TiN coating provides improved performance in a wide variety of materials, and generally used in applications with lower cutting speeds
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT75406 |
| Across Flat (Inch) | 0.1910" |
| Length of Cut (Inch) | 1.0000" (1) |
| End Length (Inch) | 0.3125" (5/16) |
| Shank Diameter (Inch) | 0.2550" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Thread Size (Inch) | 1/4"-20 |
| Number of Flutes | 4 |
| Limit | H3 |
| Type | Taper |
| Substrate | High Speed Steel |
| Coating | TIN |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Thread Size (Inch):
1/4-20"
Thread Limit:
H3
Number of Flutes:
4
Material:
High Speed Steel
Finish/Coating:
TiN
interval quantity:
1
