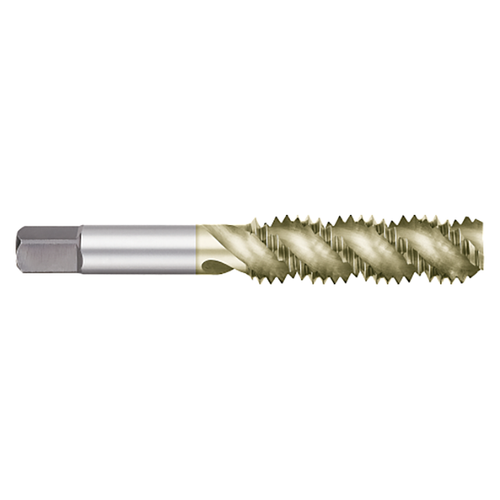

Titan USA TT76361 | M8 X 1.25 Thread x 0.2380" Shank x 1.1250" (1-1/8) LOC x 2.7188" OAL 3 Flute Uncoated High Speed Steel Spiral Flute Tap

$19.62
interval quantity:
1
SKU:
17981216
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Engineered for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials, this Titan USA line of General Purpose Taps features a 52 Degree helix and is CNC ground in the USA from high speed steel.

Features:

  • Optimized for relatively deep hole tapping in copper, brass, aluminum, and other soft ductile materials
  • Slightly longer chamfer distributes cutting over greater number of teeth for increased production
  • Can be used for plug or bottoming applications
  • Taps are on blanks that meet ANSI specifications
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT76361
Across Flat (Inch)0.2380"
Length of Cut (Inch)1.1250" (1-1/8)
End Length (Inch)0.3750" (3/8)
Shank Diameter (Inch)0.2380"
Overall Length (Inch)2.7188"
Thread Size (Inch)M8 X 1.25
LimitD5
TypeSemi Bottom
Number of Flutes3
SubstrateHigh Speed Steel
CoatingUncoated
Product TypeSpiral Flute Tap
