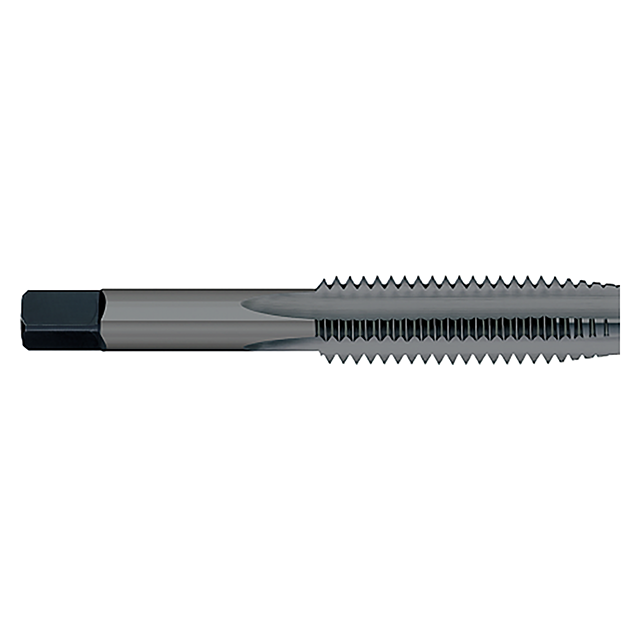

Titan USA TT90102S | 5"-40 Thread x 0.1410" Shank x 0.6250" (5/8) LOC x 1.9375" (1-15/16) OAL 3 Flute Steam Oxide Coated High Speed Steel Straight Flute Bottom Tap

$5.81
interval quantity:
1
SKU:
17981747
Weight:
0.01 LBS
Shipping:
Calculated at Checkout

This offering of Titan USA Hand Taps feature high speed steel CNC cutting tools tools that are Steam Oxide finished for decreased galling and increased lubricity in low carbon steels and gummy materials.

Features:

  • For optimal results, use a Taper Tap for an initial pass, prior to using a Plug or Bottom Tap to finish the thread
  • Taps are on blanks that meet ANSI specifications
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT90102S
Across Flat (Inch)0.1100"
Length of Cut (Inch)0.6250" (5/8)
End Length (Inch)0.1875" (3/16)
Shank Diameter (Inch)0.1410"
LimitH2
Overall Length (Inch)1.9375" (1-15/16)
Thread Size (Inch)5"-40
TypeBottom
Number of Flutes3
SubstrateHigh Speed Steel
CoatingSteam-Oxide
Product TypeStraight Flute Bottom Tap
