Features:
- For optimal results, use a Taper Tap for an initial pass
- Taps are on blanks that meet ANSI specifications
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT90172 |
| Shank Diameter | 0.1680" |
| Overall Length (Inch) | 2.1250" (2-1/8) |
| Length of Cut (Inch) | 0.7500" (3/4) |
| Thread Size | 8"-32 |
| End Length (Inch) | 0.2500" (1/4) |
| Type | Taper |
| Thread Limit | H2 |
| Number of Flutes | 4 |
| Coating | Uncoated |
| Substrate | high speed steel |

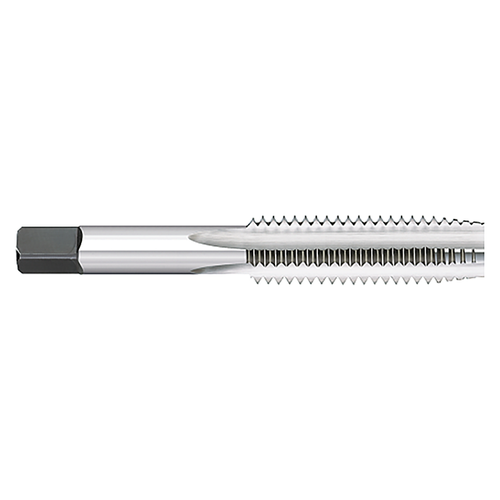

| Product Type | Straight Flute Tap |
