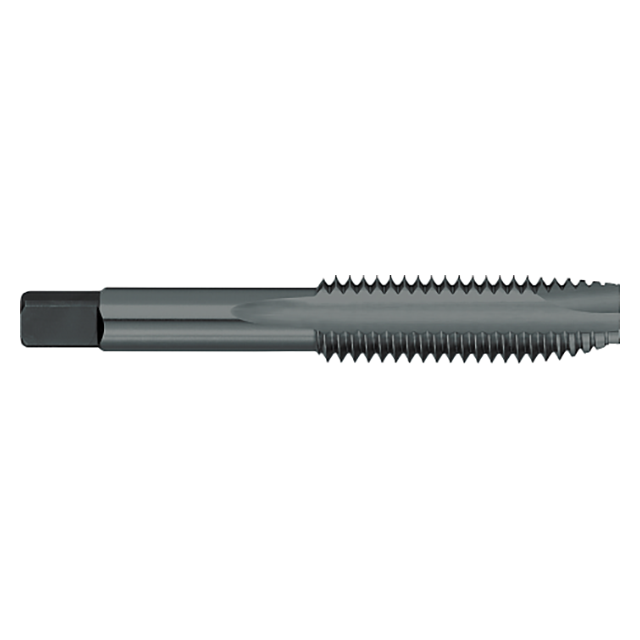

CNC ground in the USA from high speed steel onto blanks that meet ANSI specifications.
Features:
- General purpose spiral point plug taps
- Taps are on blanks that meet ANSI specifications
- Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT91066S |
| Across Flat (Inch) | 0.2380" |
| Length of Cut (Inch) | 1.1250" (1-1/8) |
| End Length (Inch) | 0.3750" (3/8) |
| Shank Diameter (Inch) | 0.3180" |
| Overall Length (Inch) | 2.7188" |
| Thread Size (Inch) | 5/16"-24 |
| Number of Flutes | 2 |
| Limit | H3 |
| Type | SP/PT Plug |
| Substrate | High Speed Steel |
| Coating | Steam Oxide |
| Product Type | Spiral Point Tap |
