Features:

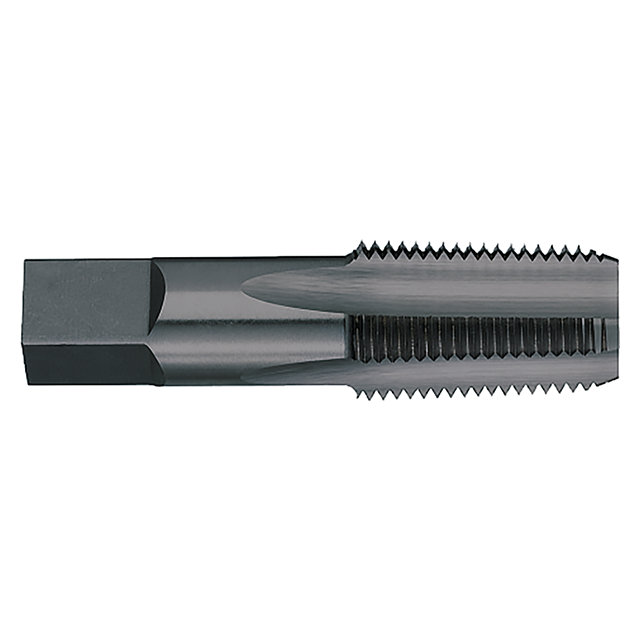

- General purpose NPT pipe taps
- Taps are on blanks that meet ANSI specifications
- Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
- High speed steel
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TT93416S |
| Shank Diameter (Inch) | 1.3125" (1-5/16) |
| Length of Cut (Inch) | 1.7500" (1-3/4) |
| Overall Length (Inch) | 4.0000" (4) |
| Across Flat (Inch) | 0.9840" (63/64) |
| End Length (Inch) | 0.9375" (15/16) |
| Thread Size (Inch) | 1-1/4"-11-1/2" |
| Coating | Steam Oxide |
| Substrate | High Speed Steel |
| Thread Type | NPT |
| Number of Flutes | 5 |
| Product Type | Standard Pipe Tap |
