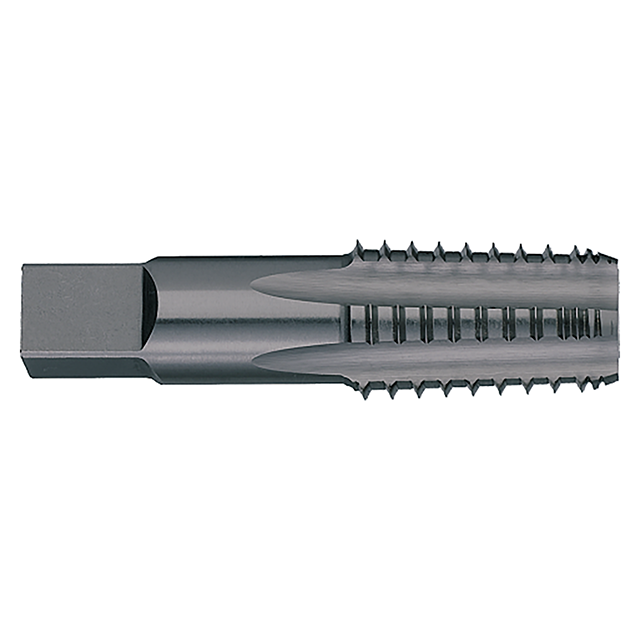

Titan USA TT93616S | 1-1/4"-11-1/2" Thread x 1.7500" (1-3/4) Thread Length x 1.3125" (1-5/16) Shank x 4.0000" (4) OAL Steam Oxide Coated High Speed Steel Interrupted Thread Pipe Tap

$226.80
Brand:
Titan USA
Thread Size (Inch):
1-3/4"
Thread Size (Decimal Inch):
1.7500"
Thread Size (mm):
44.45mm
Thread Standard:
NPT-Interrupted
Material:
High Speed Steel
Finish/Coating:
Steam Oxide
Number of Flutes:
5
Shank Diameter (Inch):
1-5/16"
Shank Diameter (Decimal Inch):
1.3125"
Shank Diameter (mm):
33.34mm
interval quantity:
1
SKU:
17982816
Weight:
1.35 LBS
Shipping:
Free Shipping

Features:

  • General purpose NPT interrupted pipe tape
  • Interrupted threads reduce friction and allow for better lubrication
  • Taps are on blanks that meet ANSI specifications
  • Steam Oxide finish provides decreased galling and increased lubricity in low carbon steels and gummy materials
  • High speed steel
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTT93616S
Shank Diameter (Inch)1.3125" (1-5/16)
Length of Cut (Inch)1.7500" (1-3/4)
Overall Length (Inch)4.0000" (4)
Across Flat (Inch)0.9840" (63/64)
End Length (Inch)0.9375" (15/16)
Thread Size (Inch)1-1/4"-11-1/2"
CoatingSteam Oxide
SubstrateHigh Speed Steel
Thread TypeNPT-Interrupted
Number of Flutes5
Product TypeInterrupted Thread Pipe Tap

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Titan USA
Thread Size (Inch):
1-3/4"
Thread Size (Decimal Inch):
1.7500"
Thread Size (mm):
44.45mm
Thread Standard:
NPT-Interrupted
Material:
High Speed Steel
Finish/Coating:
Steam Oxide
Number of Flutes:
5
Shank Diameter (Inch):
1-5/16"
Shank Diameter (Decimal Inch):
1.3125"
Shank Diameter (mm):
33.34mm
interval quantity:
1
