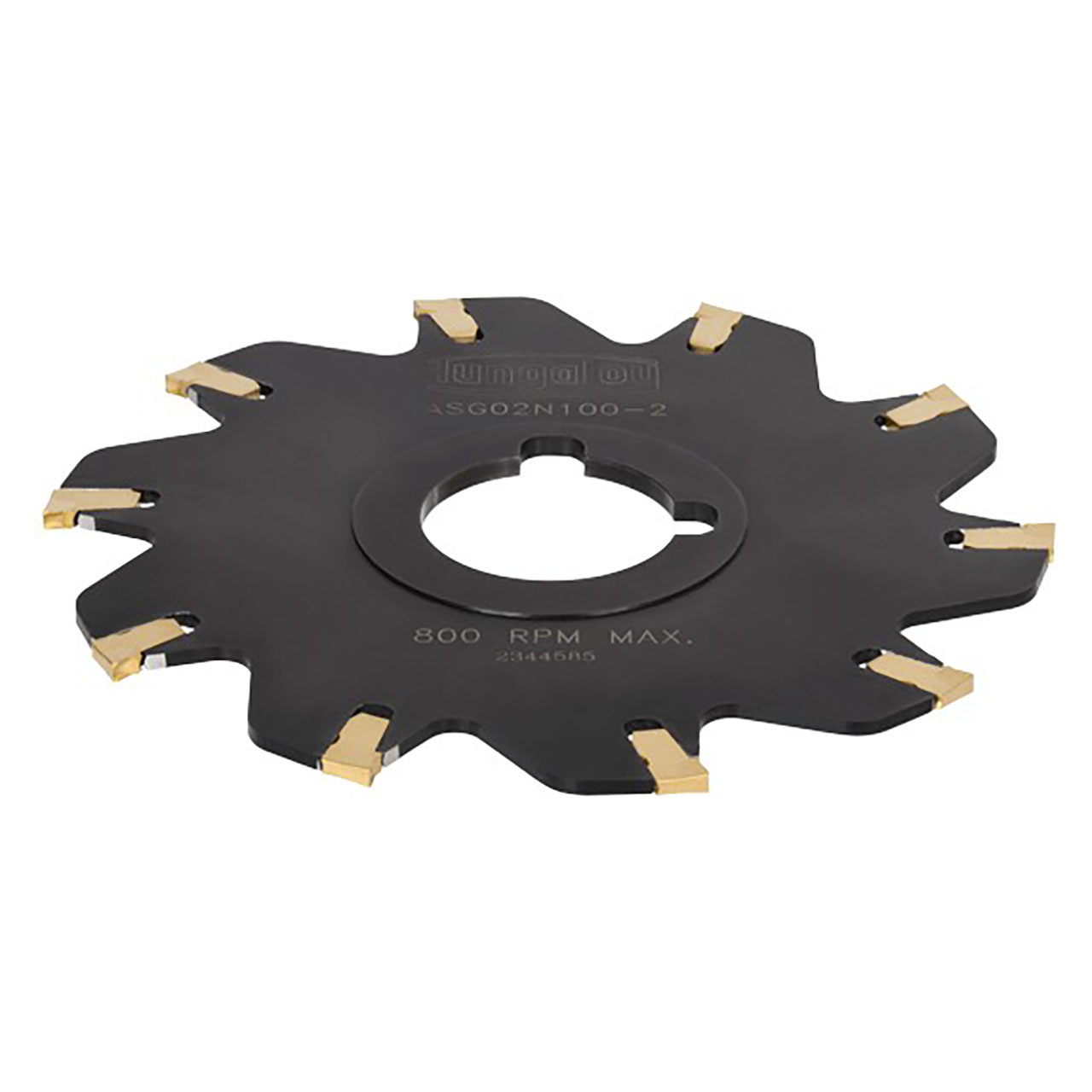

Side cutter for thin slitting and cutting off.
Product Specifications
| Manufacturer Part Number | 2350544 |
| Cutting Diameter (Inch) | 4.921" |
| Cutting Depth Maximum (Inch) | 1.339" |
| Cutting Item Count | 8 |
| Cutting Width (Inch) | 0.122" |
| Cutting Width Maximum (Inch) | 0.138" |
| Cutting Width Minimum (Inch) | 0.106" |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Overall Length (Inch) | 0.122" |
| Hub Thickness (Inch) | 0.094" |
| Peripheral Effective Cutting Edge Count | 8 |
| Body Material | Steel |
| Application | Slot Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Cutting Width (Inch):
1/8"
Cutting Width (Decimal Inch):
0.1220"
Cutting Width (mm):
3.10mm
Maximum Depth of Cut (Inch):
1-11/32"
Maximum Depth of Cut (Decimal Inch):
1.3390"
Maximum Depth of Cut (mm):
34.01mm
Cutter Diameter (Inch):
4-59/64"
Cutter Diameter (Decimal Inch):
4.9210"
Cutter Diameter (mm):
124.99mm
interval quantity:
1
