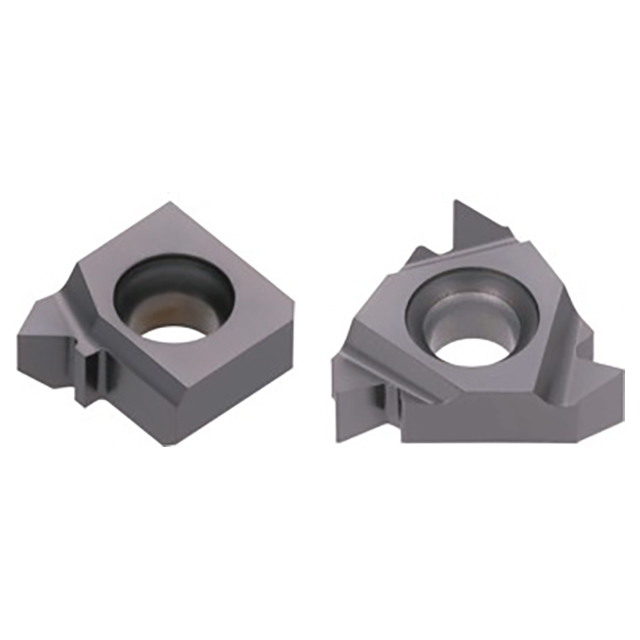

Internal 60 degree, partial profile.
Product Specifications
| # MFG | 3338739 |
| Maximum Thread Pitch (mm) | 1.50mm |
| Minimum Thread Pitch (mm) | 0.5mm |
| Corner Radius (Inch) | 0.0016" |
| Maximum Threads per Inch | 48 Threads |
| Minimum Threads per Inch | 16 Threads |
| Grade | AH725 |
| Coating | TiAlN |
| Cutting Direction | Right Hand |
| Application | Inserts |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide |
| Body Material | Carbide |
