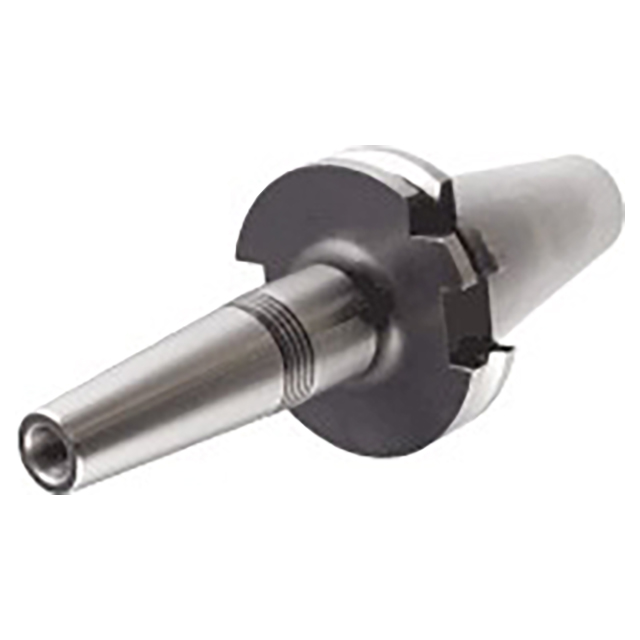

TungShrink thermal shrinking holder for carbide shank with DIN69871 shank.
Product Specifications
| # MFG | 4504382 |
| Body Diameter (mm) | 11mm |
| Body Diameter-2 (mm) | 16mm |
| Body Length (mm) | 50mm |
| Body Length-2 (mm) | 35.5mm |
| Connection Diameter Workpiece Side (mm) | 6mm |
| Overall Length (mm) | 69.1mm |
| Shank Size | 40 |
| Shank Type | Round |
| Thread Designation Inside | M8 |
| Body Material | Steel |
| Tool Type | DIN 69871 |
| Application | Tapered Shape Interface |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Nose Diameter (Inch):
7/16"
Nose Diameter (mm):
11.00mm
Nose Diameter (Decimal Inch):
0.4300"
Hole Diameter (Inch):
15/64"
Hole Diameter (mm):
6.00mm
Hole Diameter (Decimal Inch):
0.2400"
Material:
Steel
Overall Length (Decimal Inch):
2.7200"
interval quantity:
1
