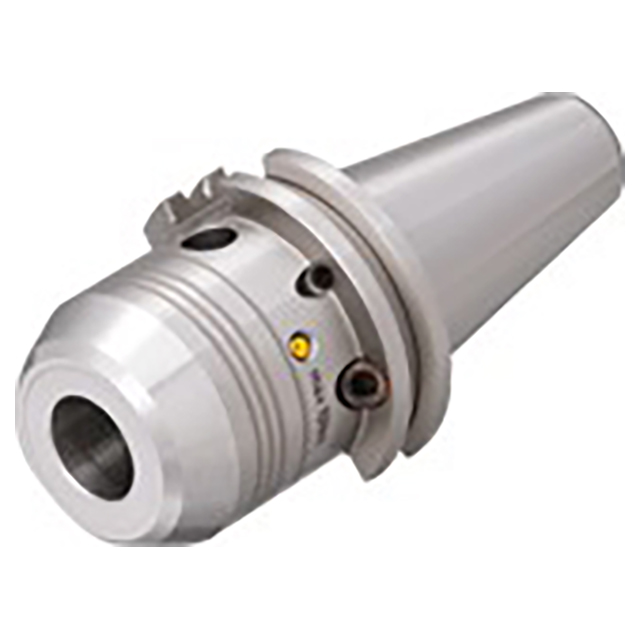

TungHydro hydraulic endmill chuck holders with DIN69871 shank.
Product Specifications
| Manufacturer Part Number | 4559301 |
| Body Diameter (mm) | 42.00mm |
| Body Diameter-2 (mm) | 80.00mm |
| Body Length (mm) | 63.00mm |
| Body Length-2 (mm) | 47.00mm |
| Body Taper End Diameter | 38 |
| Overall Length (mm) | 82.00mm |
| Clamping Length Workpiece Side (mm) | 52.00mm |
| Shank Size | 50 |
| Shank Type | Round |
| Thread Designation Inside | M16x1 |
| Tool Type | DIN 69871 |
| Body Material | Steel |
| Application | Tapered Shape Interface. |
