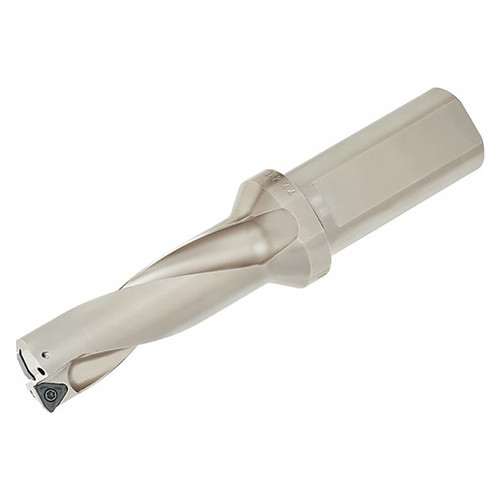

Drill body for lathes and machining centers, L/D=15.
Product Specifications
| # MFG | 4846279 |
| Connection Diameter Machine Side (mm) | 40mm |
| Cutting Diameter (mm) | 29mm |
| Functional Length (mm) | 505mm |
| Overall Length (mm) | 576.60mm |
| Point Length (mm) | 2.6mm |
| Shank Length (mm) | 69mm |
| Usable Length (mm) | 437.6mm |
| Application | General Drilling |
| Tool Type | Indexable Insert Drills |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
1-9/64"
Drill Diameter (Decimal Inch):
1.1417"
Drill Diameter (mm):
29.00mm
Shank Diameter (Inch):
1-37/64"
Shank Diameter (Decimal Inch):
1.5748"
Shank Diameter (mm):
40.00mm
interval quantity:
1
