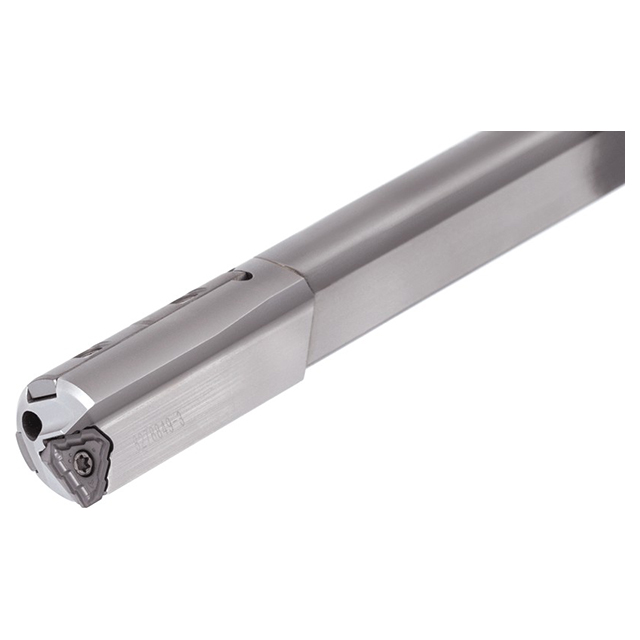

Drill body for gun drill machine. For drilling cross holes.
Product Specifications
| # MFG | 4851625 |
| Connection Diameter Machine Side (Inch) | 1-1/4" |
| Cutting Diameter (Inch) | 0.578" |
| Functional Length (Inch) | 72.047" |
| Overall Length (Inch) | 72.126" |
| Point Length (Inch) | 0.079" |
| Shank Length (Inch) | 2.756" |
| Usable Length (Inch) | 68.504" |
| Decimal Equivalent | 0.578" |
| Application | Gundrill |
| Tool Type | Deep Hole, Gun Drill |
| Body Material | Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Diameter (Inch):
37/64"
Drill Diameter (Decimal Inch):
0.5780"
Drill Diameter (mm):
14.68mm
Shank Diameter (Inch):
1-1/4"
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
interval quantity:
1
