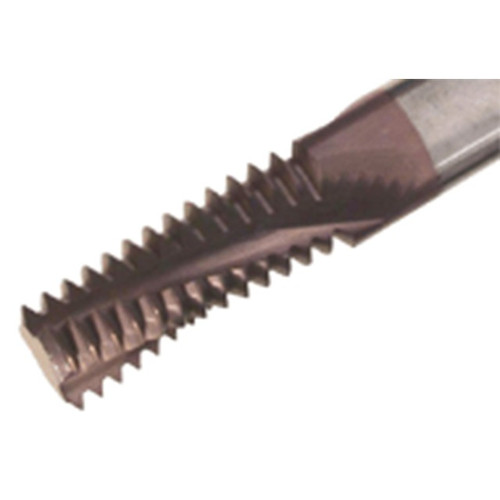

Solid carbide internal threading endmill with coolant holes, used for ISO thread profile.
Product Specifications
| Manufacturer Part Number | 5605046 |
| Connection Diameter Machine Side (Inch) | 0.315" |
| Cutting Diameter (Inch) | 0.307" |
| Functional Length (Inch) | 2.992" |
| Grade | AH725 |
| Threads per Inch Maximum (Inch) | 16.9 Threads |
| Body Material | Carbide |
| Tool Type | Solid Carbide Thread Mills |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Internal Thread Milling |
