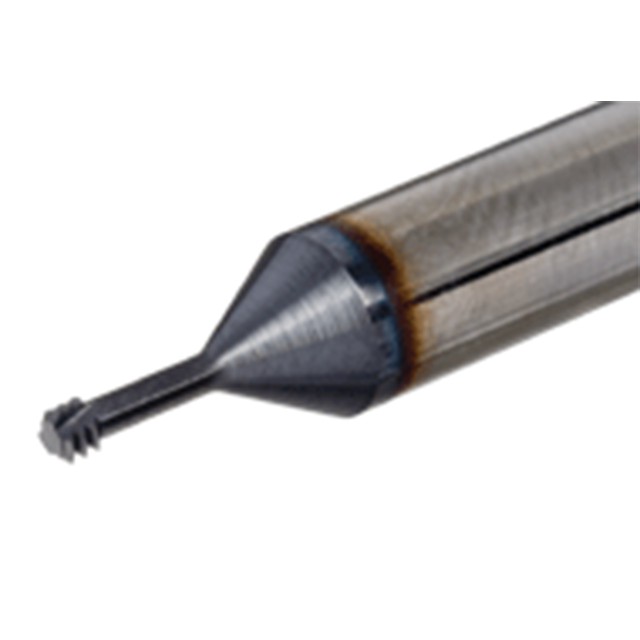

Small diameter short left-hand (CNC code M04) solid carbide Un profile threading endmills. Used for hardened steel. High cutting speeds, low cutting forces due to the short threading contact resulting in accurate and parallel thread.
Product Specifications
| Manufacturer Part Number | 5605686 |
| Connection Diameter Machine Side (Inch) | 0.236" |
| Cutting Diameter (Inch) | 0.146" |
| Functional Length (Inch) | 2.283" |
| Grade | AH750 |
| Threads per Inch Maximum (Inch) | 32 Threads |
| Body Material | Carbide |
| Tool Type | Solid Carbide Thread Mills |
| Number of Flutes | 3 |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Applicable Material | Hard Materials |
| Application | Internal Thread Milling |
