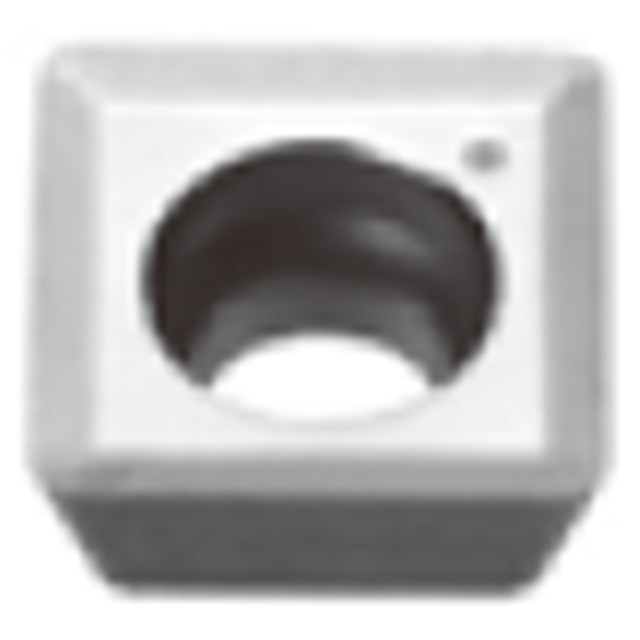

Highly precious ground insert with AJ chipbreaker for aluminum machining.
Product Specifications
| Manufacturer Part Number | 5612033 |
| Corner Radius (Inch) | 0.0157" |
| Depth of Cut Maximum (Inch) | 0.157" |
| Inscribed Circle Diameter (Inch) | 0.2" |
| Insert Thickness (Inch) | 0.094" |
| Insert Width (Inch) | 0.2" |
| Maximum Feed per Tooth | 0.0059"/tooth |
| Minimum Feed per Tooth | 0.002"/tooth |
| Number of Cutting Edges | 4 |
| Application | Multi Functional tools, Shoulder Milling |
| Body Material | Carbide |
| Grade | TH10 |
| Cutting Edge Material | Carbide |
| Applicable Material | Cast Iron, Hard Materials, Non Ferrous Metals, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
TH10
Width (Inch):
13/64"
Width (Decimal Inch):
0.2000"
Width (mm):
5.08mm
Inscribed Circle (Inch):
13/64"
Inscribed Circle (Decimal Inch):
0.2000"
Inscribed Circle (mm):
5.08mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
interval quantity:
10
