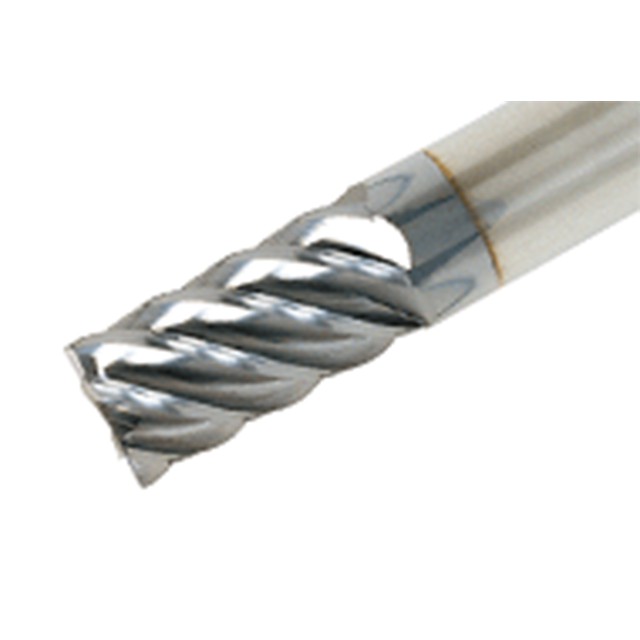

6 Flute endmill, 45 degree helix angle, for finishing operation. AH750 grade is applicable to the hardened steel up to 65 HRC.
Product Specifications
| Manufacturer Part Number | 5620623 |
| Connection Diameter Machine Side (mm) | 16mm |
| Cutting Diameter (mm) | 16mm |
| Maximum Depth of Cut (mm) | 32mm |
| Overall Length (mm) | 92mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.12mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.05mm/tooth |
| Number of Flutes | 6 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Round |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Square |
