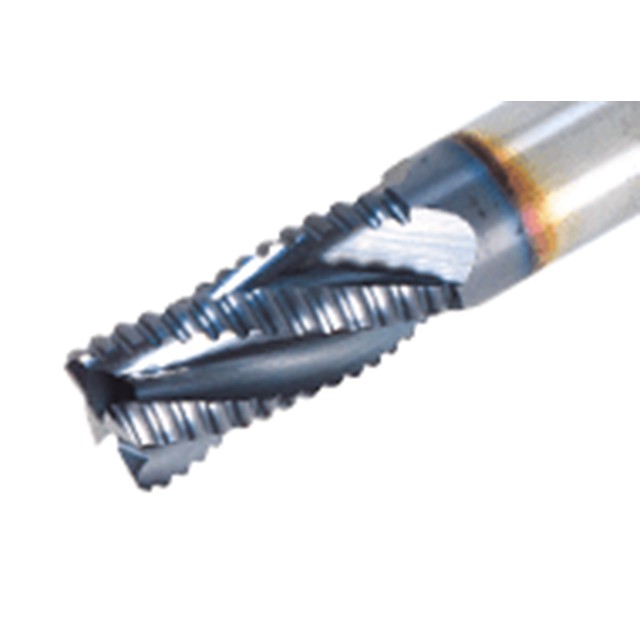

3-4 Flute roughing endmill, 30 degree or 38 helix angle, for alloy steel and stainless steel.
Product Specifications
| Manufacturer Part Number | 5621459 |
| Connection Diameter Machine Side (mm) | 10mm |
| Corner Chamfer Width (mm) | 0.3mm |
| Cutting Diameter (mm) | 10mm |
| Maximum Depth of Cut (mm) | 22mm |
| Overall Length (mm) | 72mm |
| Head Length (mm) | 30mm |
| Neck Length (mm) | 30mm |
| Flute Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Shank Type | Round |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Chamfer |
