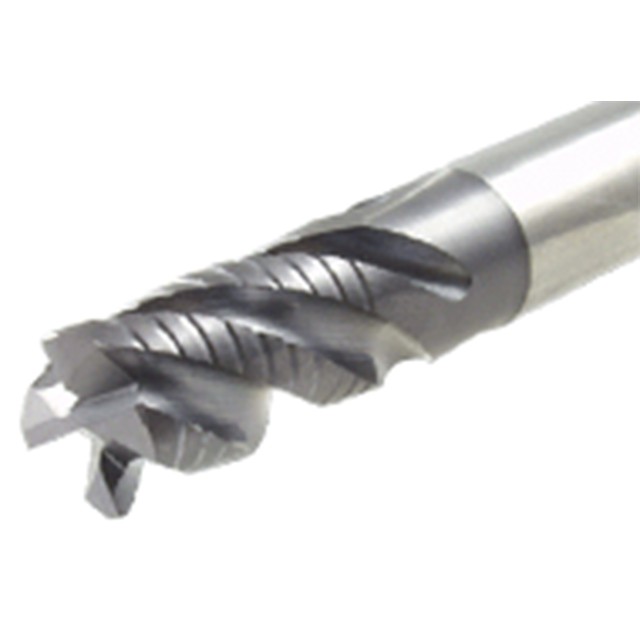

4 Flute roughing endmill, 38 degree helix angle, with chip splitter.
Product Specifications
| Manufacturer Part Number | 5622215 |
| Connection Diameter Machine Side (mm) | 10mm |
| Corner Chamfer Width (mm) | 0.4mm |
| Cutting Diameter (mm) | 10mm |
| Maximum Depth of Cut (mm) | 22mm |
| Overall Length (mm) | 72mm |
| Head Length (mm) | 32mm |
| Neck Length (mm) | 32mm |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Shank Type | Weldon |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Chamfer |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Mill Diameter (Inch):
25/64"
Mill Diameter (Decimal Inch):
0.3900"
Mill Diameter (mm):
10.00mm
End Type:
Chamfer
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
TiAlN
Length of Cut (Inch):
55/64"
Length of Cut (Decimal Inch):
0.8700"
Length of Cut (mm):
22.00mm
Shank Diameter (Inch):
25/64"
Shank Diameter (Decimal Inch):
0.3900"
Shank Diameter (mm):
10.00mm
Overall Length (Inch):
2-53/64"
Overall Length (Decimal Inch):
2.8300"
Overall Length (mm):
72.00mm
