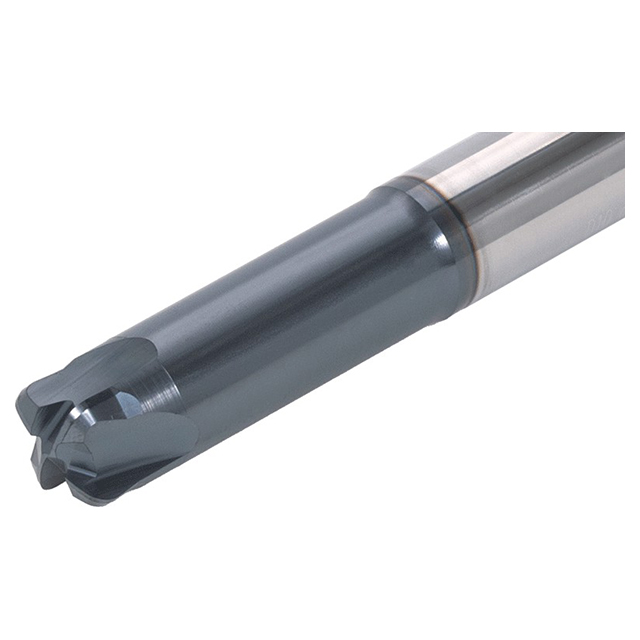

4 Flute high feed endmill.
Product Specifications
| # MFG | 5622470 |
| Connection Diameter Machine Side (mm) | 8mm |
| Corner Radius (mm) | 1.3mm |
| Cutting Diameter (mm) | 8mm |
| Maximum Depth of Cut (mm) | 0.4mm |
| Overall Length (mm) | 63mm |
| Head Length (mm) | 26mm |
| Neck Length (mm) | 26mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.4mm/tooth |
| Number of Flutes | 4 |
| Grade | AH750 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Face Milling, High Feed Milling, Profile Milling |
| Cutting Edge Material | Carbide |
| Shank Type | Round |
| Applicable Material | Hard Materials |
| End Shape | Corner Radius |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Corner Radius (mm):
1.30mm
Finish/Coating:
TiAlN
Body Material:
Carbide
Grade:
AH750
Maximum Depth of Cut (mm):
0.40mm
Number of Flutes:
4
Head Length (mm):
26.00mm
Neck Length (mm):
26.00mm
Overall Length (mm):
63.00mm
Shank Type:
Round
interval quantity:
1
