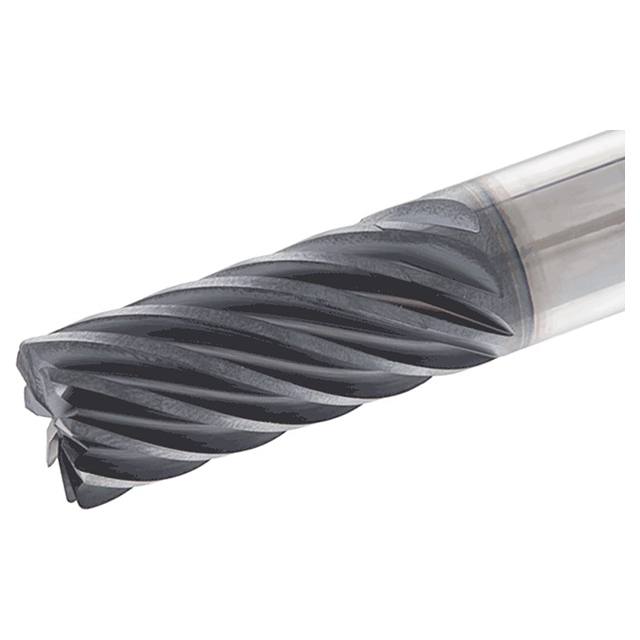

7 or 9 Flute chatter dampening endmill, variable helix and variable pitch, for titanium machining.
Product Specifications
| # MFG | 5623068 |
| Connection Diameter Machine Side (mm) | 6mm |
| Corner Radius (mm) | 0.2mm |
| Cutting Diameter (mm) | 6mm |
| Maximum Depth of Cut (mm) | 13mm |
| Overall Length (mm) | 57mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.06mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.03mm/tooth |
| Number of Flutes | 7 |
| Grade | AH725 |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Round |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Corner Radius |
