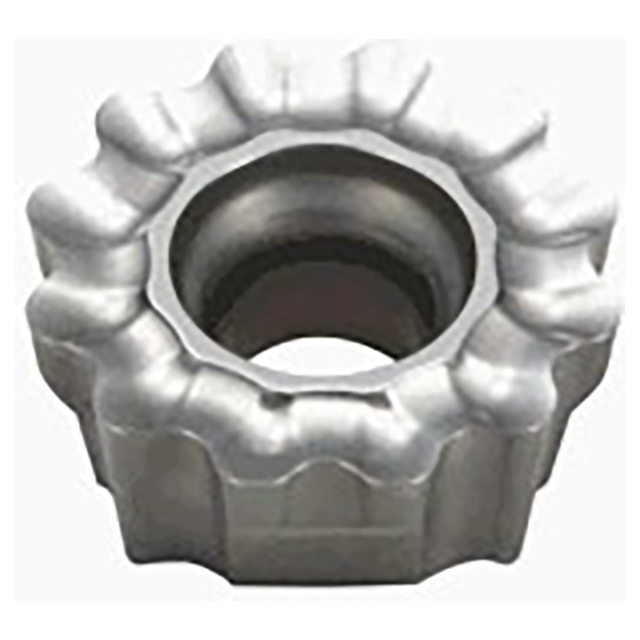

Tungaloy 5811917 | RCMT1606FN-NAJ KS15F 0.630" Diameter x 0.256" Thickness Carbide Milling Insert

$28.78 $23.89
(You save $4.89)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
KS15F
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6300"
Inscribed Circle (mm):
16.00mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2560"
Thickness (mm):
6.50mm
interval quantity:
10
SKU:
23023170
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Insert for Round Split cutters with lapped surface and serrated edge for aluminum machining.


Product Specifications
# MFG5811917
Depth of Cut Maximum (Inch)0.315"
Inscribed Circle Diameter (Inch)0.63"
Insert Thickness (Inch)0.256"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.0067"/tooth
Number of Cutting Edges4
ApplicationFace Milling, Profile Milling
Body MaterialCarbide
GradeKS15F
Cutting Edge MaterialCarbide
Applicable MaterialNon Ferrous Metals

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
KS15F
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6300"
Inscribed Circle (mm):
16.00mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2560"
Thickness (mm):
6.50mm
interval quantity:
10
