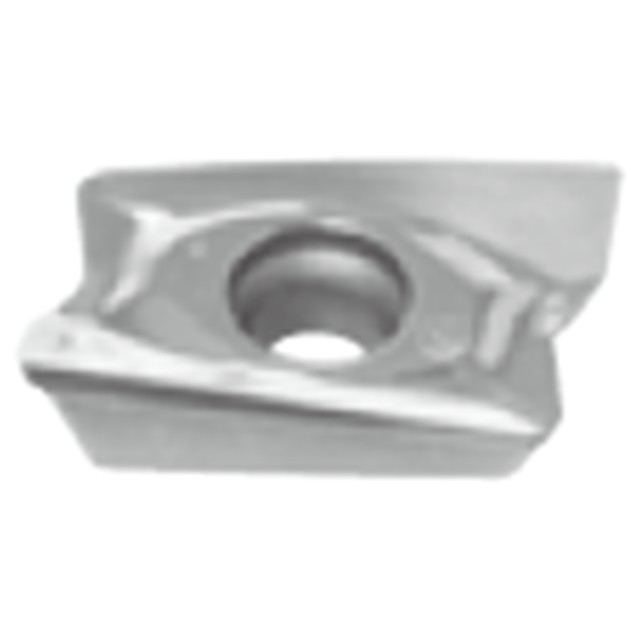

Highly precious ground insert with AJ chipbreaker for aluminum machining.
Product Specifications
| Manufacturer Part Number | 5812805 |
| Cutting Edge Effective Length (Inch) | 0.78" |
| Corner Radius (Inch) | 0.0157" |
| Depth of Cut Maximum (Inch) | 0.657" |
| Inscribed Circle Diameter (Inch) | 0.421" |
| Insert Length (Inch) | 0.78" |
| Insert Thickness (Inch) | 0.24" |
| Insert Width (Inch) | 0.425" |
| Maximum Feed per Tooth | 0.0098"/tooth |
| Minimum Feed per Tooth | 0.002"/tooth |
| Number of Cutting Edges | 2 |
| Wiper Edge Length | 0.092" |
| Application | Shoulder Milling |
| Body Material | Carbide |
| Grade | KS15F |
| Cutting Edge Material | Carbide |
| Applicable Material | Non Ferrous Metals |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
KS15F
Width (Inch):
27/64"
Width (Decimal Inch):
0.4250"
Width (mm):
10.80mm
Length (Inch):
25/32"
Length (Decimal Inch):
0.7800"
Length (mm):
19.81mm
Inscribed Circle (Inch):
27/64"
Inscribed Circle (Decimal Inch):
0.4210"
Inscribed Circle (mm):
10.69mm
Thickness (Inch):
15/64"
Thickness (Decimal Inch):
0.2400"
Thickness (mm):
6.10mm
interval quantity:
10
