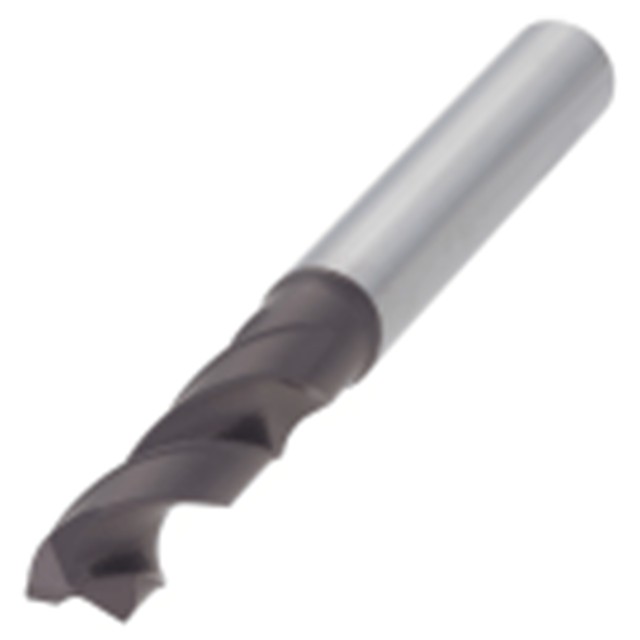

Solid carbide drill without coolant hole, L/D=5.
Product Specifications
| Manufacturer Part Number | 6154876 |
| Drill Bit Size/Cutting Diameter (mm) | 9.1mm |
| Length Chip Flute (mm) | 61mm |
| Overall Length (mm) | 103mm |
| Point Length (mm) | 1.66mm |
| Shank Length (mm) | 40mm |
| Usable Length (mm) | 49mm |
| Connection Diameter Machine Side (mm) | 10mm |
| Point Angle (Degree) | 140 Degree |
| Shank Type | Round |
| Grade | AH725 |
| Body Material | Carbide |
| Coolant Supply Property | External |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | Solid Carbide Drills |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Bit Size (Inch):
23/64"
Drill Bit Size (Decimal Inch):
0.3600"
Drill Bit Size (mm):
9.10mm
Drill Point Angle:
140 Degree
Overall Length (Inch):
4-1/16"
Overall Length (Decimal Inch):
4.0600"
Finish/Coating:
TiAlN
Shank Type:
Round
