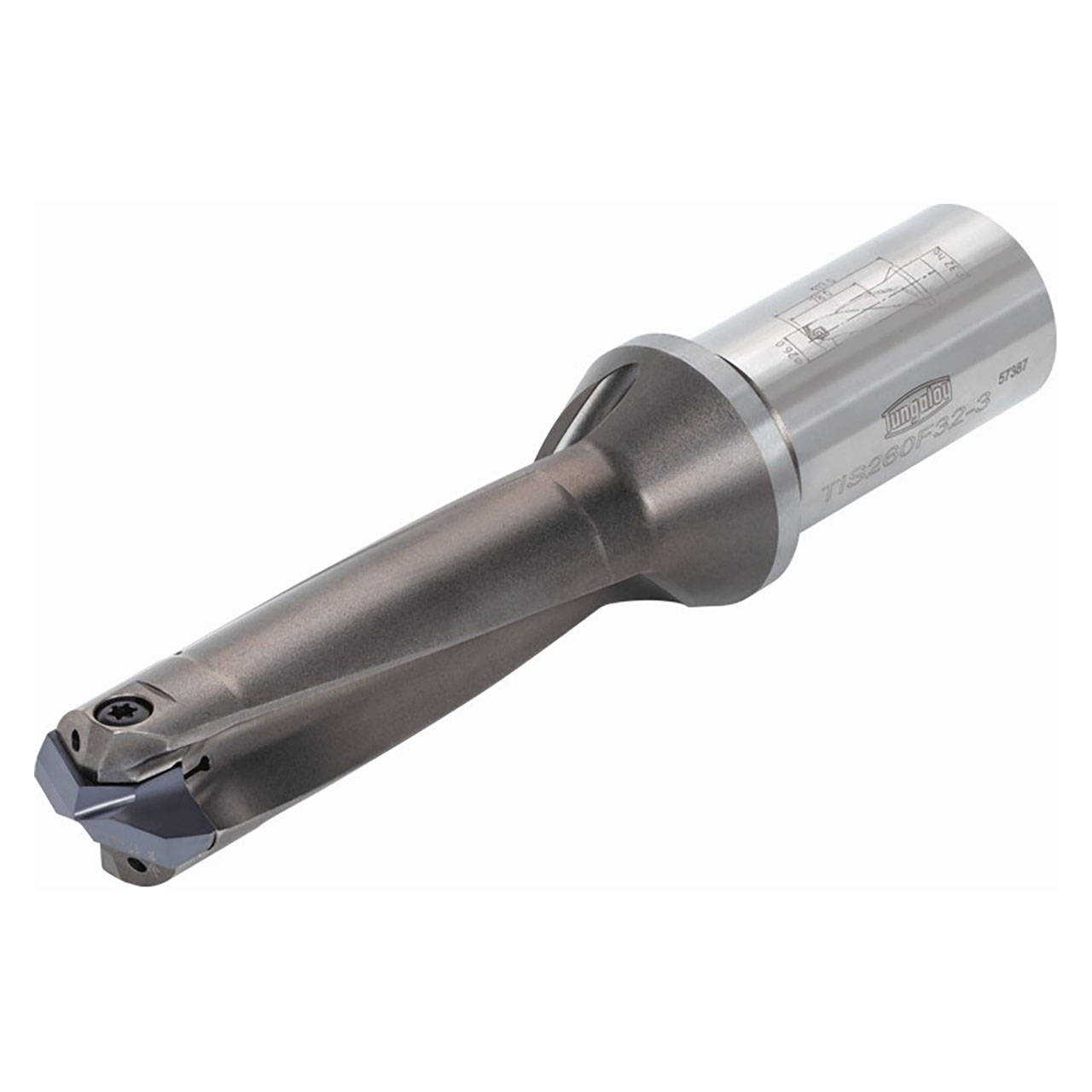

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 27.9 mm |
| Cutting Diameter Minimum (mm.) | 27 mm |
| Flange Diameter (mm) | 40 mm |
| Connection Diameter Machine Side (mm) | 25 mm |
| Overall Length (mm) | 180.00mm |
| Point Length (mm) | 2.73 mm |
| Shank Length (mm) | 56 mm |
| Usable Length (mm) | 57 mm |
| Insert Seat Size Code (SSC) | 18 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
27.90mm
Minimum Cutting Diameter (mm):
27.00mm
Flange Diameter (mm):
40.00mm
Body Material:
Steel
Overall Length (mm):
180.00mm
Point Length (mm):
4.91mm
Shank Length (mm):
60.00mm
Usable Length (mm):
85.20mm
interval quantity:
1
