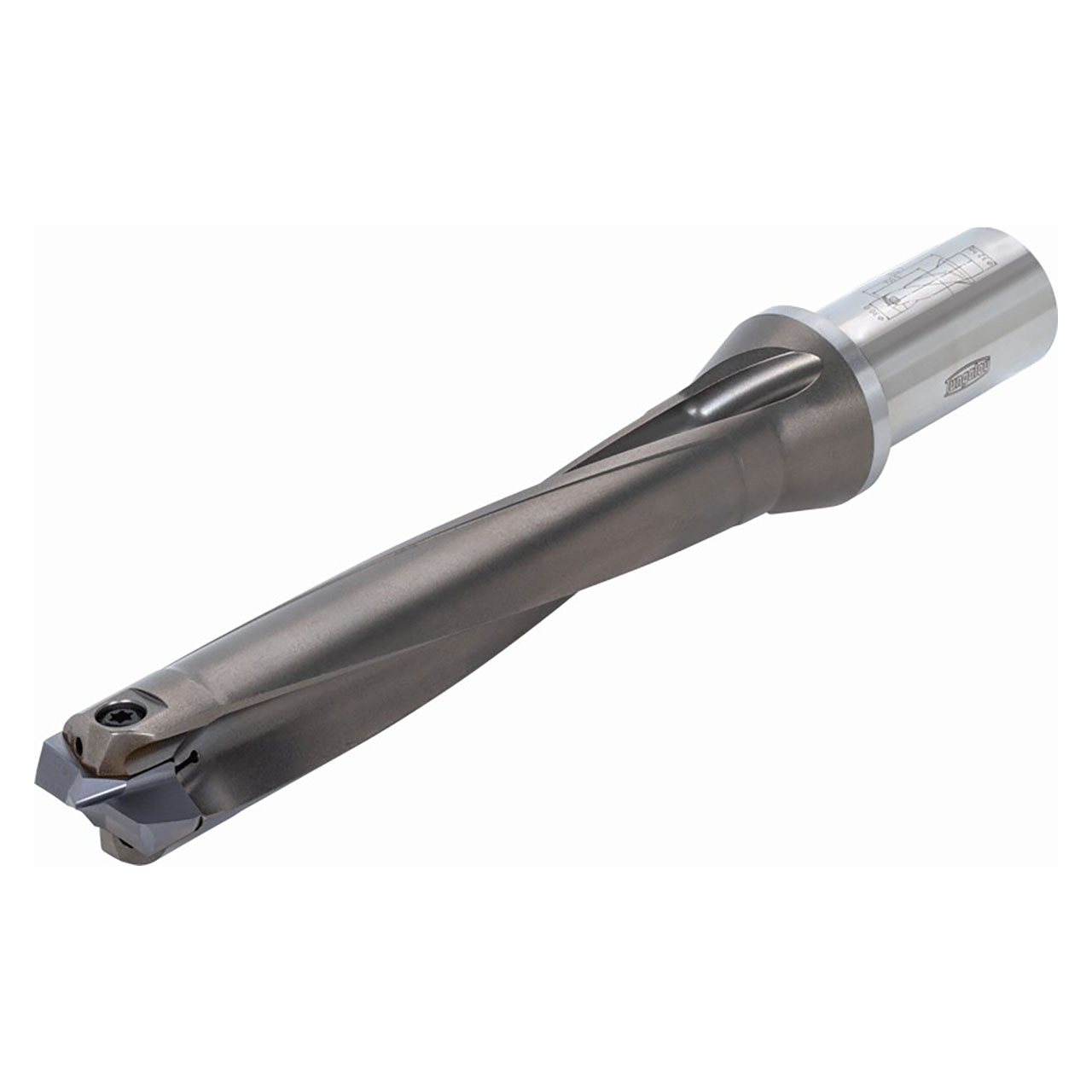

"DrillMeister" TIDC L/D=5 indexable head drills.
Product Specifications
| Cutting Diameter Maximum (Inch) | 1.217" |
| Cutting Diameter Minimum (Inch) | 1.181" |
| Flange Diameter (Inch) | 1.772" |
| Connection Diameter Machine Side (Inch) | 0.512" |
| Overall Length (Inch) | 10.618" |
| Point Length (Inch) | 0.075" |
| Shank Length (Inch)) | 1.811" |
| Shank Length (mm) | 2.559" |
| Insert Seat Size Code (SSC) | 12 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
1.2170"
Minimum Cutting Diameter (Decimal Inch):
1.1810"
Flange Diameter (Decimal Inch):
1.7720"
Body Material:
Steel
Overall Length (Decimal Inch):
10.618"
Point Length (Decimal Inch):
0.2150"
Shank Length (Decimal Inch):
2.3620"
Usable Length (Decimal Inch):
6.0890"
