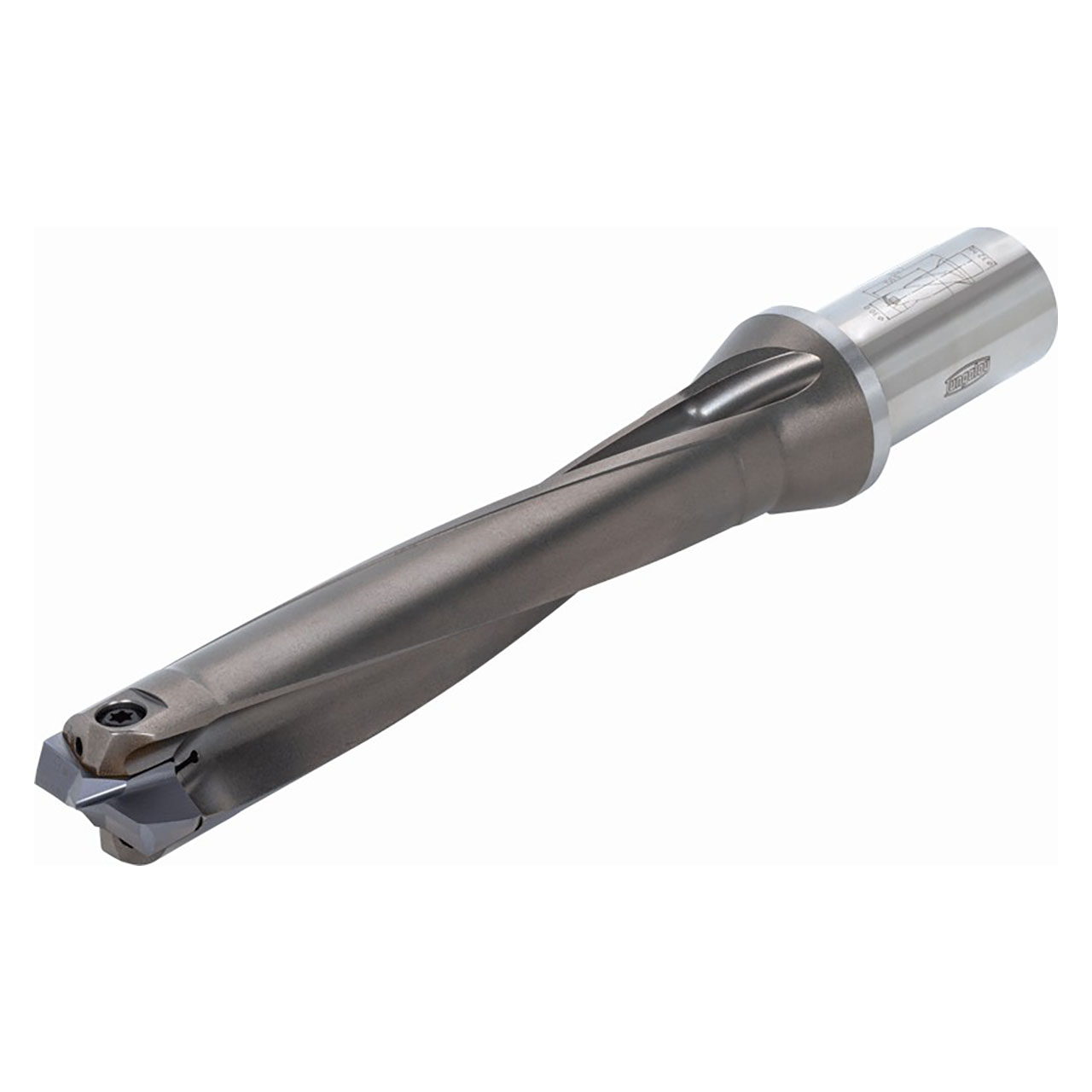

"DrillMeister" indexable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 1.335" |
| Cutting Diameter Minimum (Inch) | 1.299" |
| Flange Diameter (Inch) | 2.165" |
| Connection Diameter Machine Side (Inch) | 1" |
| Overall Length (Inch) | 11.791" |
| Point Length (Inch) | 0.113" |
| Shank Length (Inch)) | 2.205" |
| Shank Length (mm) | 9.112" |
| Insert Seat Size Code (SSC) | 19 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
1.3350"
Minimum Cutting Diameter (Decimal Inch):
1.2990"
Flange Diameter (Decimal Inch):
2.1650"
Body Material:
Steel
Overall Length (Decimal Inch):
11.791"
Point Length (Decimal Inch):
0.2370"
Shank Length (Decimal Inch):
2.6770"
Usable Length (Decimal Inch):
6.6990"
